Snap-Action Switch with 16.7mm Lever: 3-Pin, SPDT, 5A

Rating:

96% of 100

SKU: POLOLU-1402 Brand: Pololu

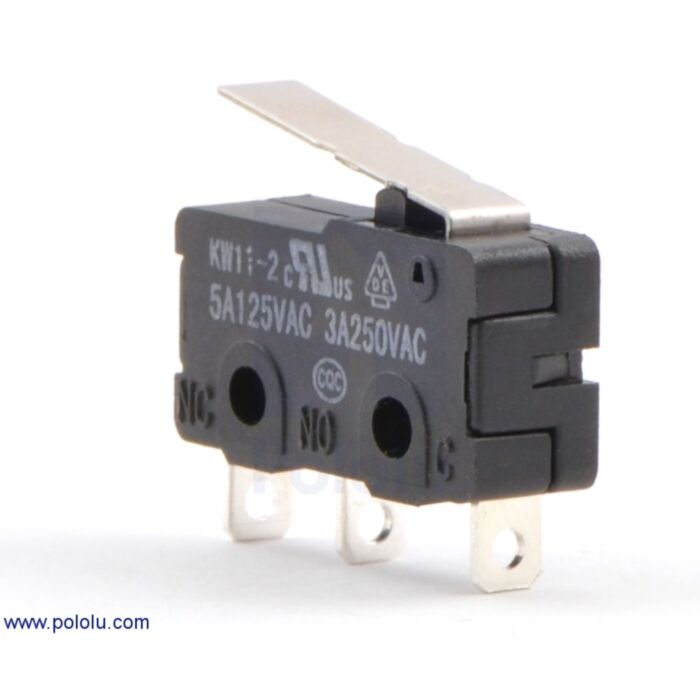

This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile bump sensor for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm, and the lever arm is 16.7 mm long.

$2.80 AUD, inc GST

$2.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $2.45 (exc GST)
25+ $2.36 (exc GST)

This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79" x 0.25" x 0.40"), and the lever arm is 16.7 mm (0.66") long. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used. The maximum operating force is 0.9 N, or approximately 90 gf (3 oz).

Dimensions (in mm) of snap-action switch with 16.7mm lever: 3-pin, SPDT, 5A.

For a more sophisticated tactile sensor, see Pololu's force-sensing resistors.
