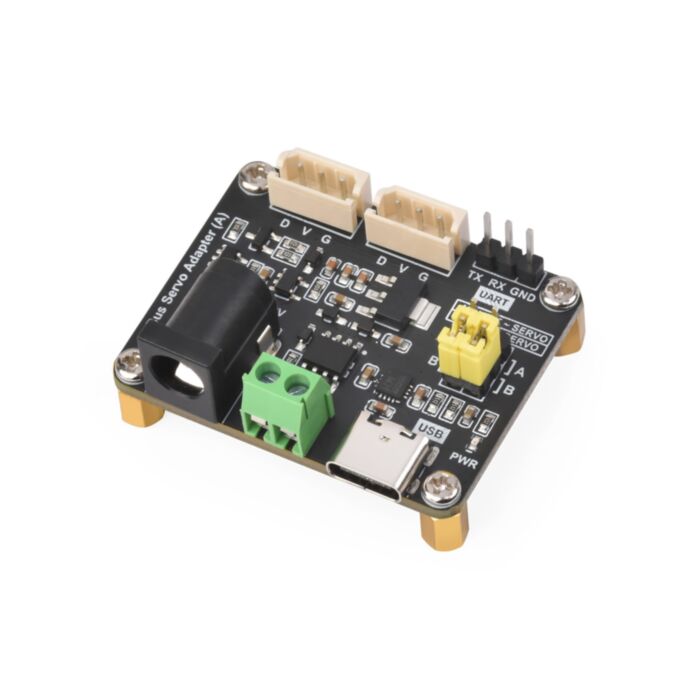

Serial Bus Servo Driver Board

SKU: WS-25514 Brand: Waveshare

Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos, Small In Size, Easy to...

$8.15 AUD, inc GST

$7.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 20th of Nov

Quantity Discounts:

10-25 $7.11 (exc GST)
25+ $6.89 (exc GST)

Serial Bus Servo Driver Board, Integrates Servo Power Supply And Control Circuit, Applicable for ST/SC Series Serial Bus Servos, Small In Size, Easy to Integrate

Features

Supports connecting to a host or MCU to control the serial bus servos
Allows controlling up to 253 ST/SC series serial bus servos at the same time (sufficient power supply required)
9~12.6V voltage input (the input voltage and the servo voltage must be matched)
Provides convenient serial bus servo control solutions
Integrates control circuit to ensure the stable operation of serial bus servo
Compact size and space saving, suitable for integration into sorts of space-limited projects

Specifications

Power Supply	DC 9~12.6V (ST series servo)
Power supply connector	5.5 × 2.1mm DC
communication interface	UART
Dimensions	42.00 × 33.00mm
Mounting hole size	2.50mm
Mounting hole spacing	37.00 × 28.00mm

Application examples

Servos will provide various feedback like position, speed, torque lock, and operating mode (servo mode, servo motor mode, etc.) for advanced projects requiring closed-loop automatic control
Ideal choice for building quadruped robots, hexapod walkers, robotic arms and other robotic projects requiring multiple servos
Compact size, suitable for integration into sorts of space-limited projects

* images here are for reference ONLY

Compatible Servos

Supports ST/SC series bus servos, and can directly power the servos via DC power jack, supports selecting power supply input according to the servo used

Note: It is NOT recommended to use ST series and SC series servos together. When using different models of the same series, pay attention to whether the power input can meet the requirements of all the servos at the same time.UART serial bus control

Allows controlling up to 253 SC/ST series serial bus servos at the same time, supports receiving the operating status and various information feedback of each servo

Note: though one channel UART can control up to 253 bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos.Two Power supply methods

Onboard DC5.5x2.1mm power jack and screw terminal for easy integration into existing projects

Supports UART and USB control

Switching the control mode by selecting A or B via the jumper

Easy to use with USB control

Connect the driver board to the host via a USB cable to easily control the serial bus servo and receive data feedback, speeding up the project prototyping process

Suitable for more Applications via UART

Supports directly controlling the serial bus servo via UART communication, and provides SDK which is compatible with various hardware platforms, please refer to the product's Wiki for more details

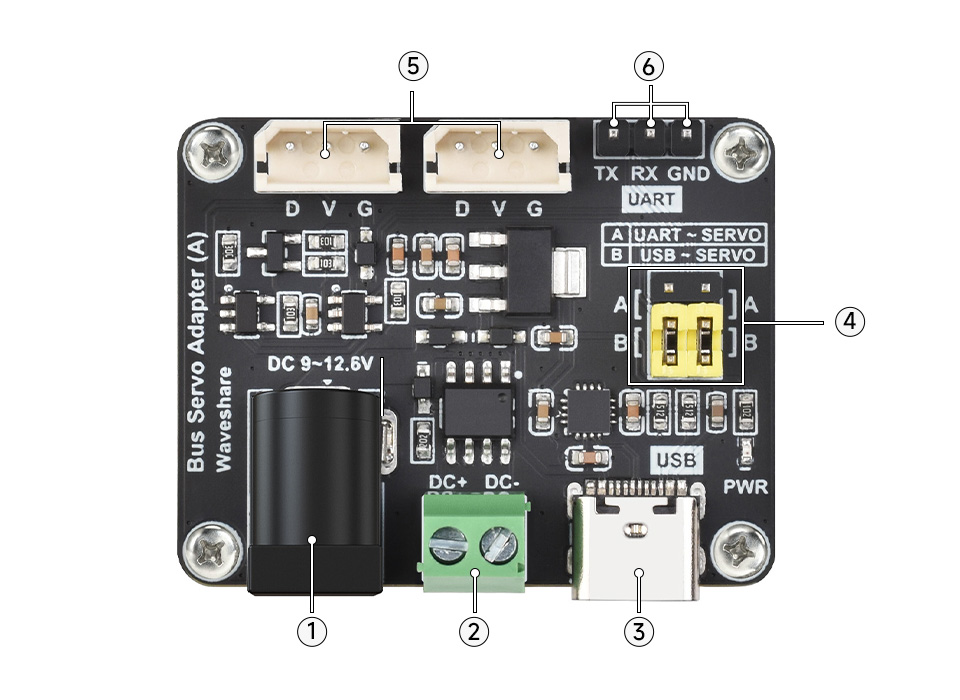

What's On Board

5.5*2.1 DC power jack
Power supply screw terminal
USB Type-C connector
Control mode switch jumper
Serial bus servo control interface
UART communication interface

Dimensions

Resources

Wiki for S-Bus servo Driver board
