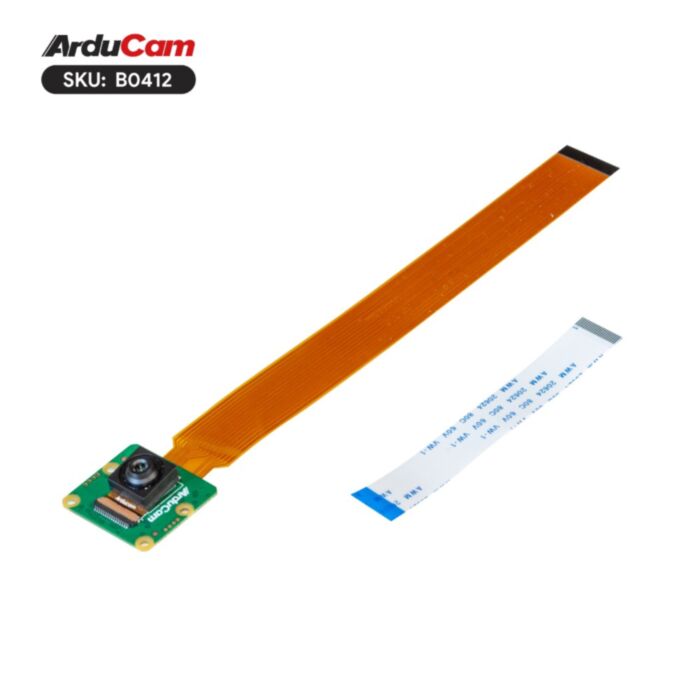

12MP IMX378 Camera Module

SKU: AC-B0412 Brand: Core Electronics

Based on Sony’s IMX378 high-quality image sensor, Arducam IMX378 camera module is a ready-to-use embedded vision solution for the Raspberry Pi.

$64.60 AUD, inc GST

$58.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

6-12 $56.96 (exc GST)
12+ $55.79 (exc GST)

Based on Sony’s IMX378 high-quality image sensor, Arducam IMX378 camera module is a ready-to-use embedded vision solution for the Raspberry Pi. With a resolution of 12.3MP and a V2-like form factor, it is compatible with any existing Pi models and works with the latest software from the foundation. It can be widely used in machine vision systems and outdoor applications.

Specifications

Sensor	IMX378
Optical Size	Type 1/2.3” (Diagonal 7.857 mm)
Pixel Size	1.55μm×1.55μm
Shutter Type	Rolling Shutter
Max Sensor Resolution	4056 x 3040
Color Filter Array	Bayer RGB
Resolution and Frame Rate	RAW10: 1332×990@120fps; RAW12: 2028×1080@50fps, 2028×1520@40fps, 4056×3040@10fps
Supported Platform	Pi 4/3/Zero/CM3/CM4
Output	RAW10/RAW12
Focus Type	Manual
Focus	50cm~INF
Lens	f/1.8; EFL: 4.74mm ; FoV: 82.4° (D)
IR Sensitivity	Built-in 650nm IR-cut filter, visible light only
Dimensions	25mm × 24mm

Documentation

User Guide

Shipping List

1 x IMX378 Camera Module
1 x 150mm 15pin to 22pin flex cable
1 x 80mm 22pin flex cable

This product is listed in:

Sensors>Camera
Deals>30% Off
