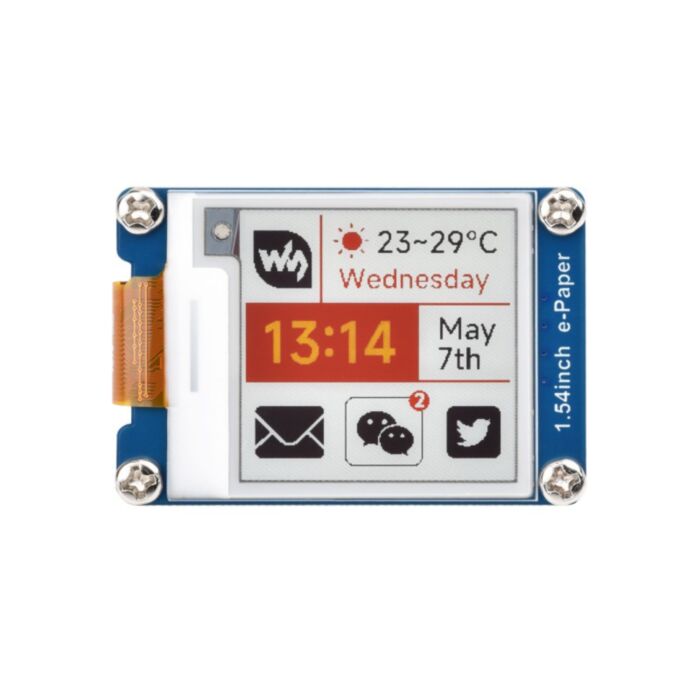

1.54inch e-Paper display (200x200)

SKU: WS-30475 Brand: Waveshare

1.54inch e-Paper display (G), e-ink display, 200x200, Red/Yellow/Black/White, SPI Interface...

$19.90 AUD, inc GST

$18.09 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 23 and Jul 28

Quantity Discounts:

10+ $17.36 (exc GST)
25+ $16.83 (exc GST)

Delivering a crisp, paper-like visual experience with minimal power consumption, the 1.54" e-Paper Display is an great solution for a variety of display needs. This ultra-low-power electronic ink display supports four colours - Red, Yellow, Black, and White.

Specifications

Display Size: 1.54" (27.0 × 27.0 mm)
Resolution: 200 × 200 pixels
Colour Display: Red / Yellow / Black / White
Display Type: Passively Reflective e-Paper
Viewing Angle: >170°
Grey Scale: 2 levels
Dot Pitch: 0.135 × 0.135 mm
Interface: 3-wire SPI / 4-wire SPI
Power Supply: 3.3V (raw display), 3.3V/5V (with driver board)
Refresh Power: <30 mW
Standby Current: <0.01 µA
Fast Refresh Time: 15 seconds
Full Refresh Time: 20 seconds
Outline Dimensions:
- Raw Display: 37.32 × 31.8 × 1.00 mm
- With Driver Board: 48.00 × 33.00 mm

Pinout

VCC: Power input (3.3V / 5V)
GND: Ground
DIN: SPI MOSI pin
CLK: SPI SCK pin
CS: SPI chip select (active low)
DC: Data/Command selection
- High = Data
- Low = Command
RST: External reset (active low)
BUSY: Busy status output pin

Dimensions

Documents

Wiki

Shipping List

1 x 1.54inch e-Paper Module (G)
1 x JST-PH 8PIN cable

This product is listed in:

Displays & Screens>E-Paper
