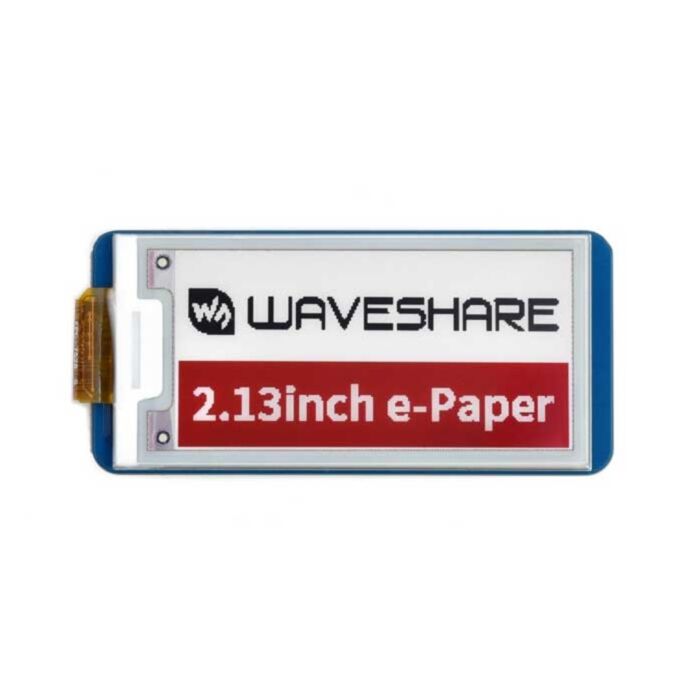

E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, 2.13inch, Red / Black / White, SPI (212×104)

Rating:
85% of 100
SKU: CE07879 Brand: Waveshare
Low Power, Wide Viewing Angle, Paper-Like Effect. Ideal for price tags, shelf labels, industrial instruments...
$25.10 AUD, inc GST
$22.82 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 04 and Mar 11

Quantity Discounts:

  • 10-25 $22.14 (exc GST)
  • 25+ $21.68 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

2.13inch E-Paper E-Ink Display Module (B) For Raspberry Pi Pico, 250×122 Pixels, Red / Black / White, SPI Interface

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Colour EINK displays like this one require a full image refresh which takes around 15 seconds, if you need partial refresh support (less than 1 second) and full refresh times around a couple of seconds, then consider getting a faster monochrome EINK display like this one. If you need full refresh times below a second then it would be best to use a different technology like a OLED or LCD.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
  • Raspberry Pi Pico is NOT included, grab one here

Specifications

  • Operating Voltage: 3.3V
  • Communication Interface: 3-wire SPI, 4-wire SPI
  • Outline Dimensions: 65x30.5mm
  • Display Size:48.55x23.71mm
  • Dot Pitch: 0.229x0.228mm
  • Resolution 212x104 pixels
  • Display Colour: Red, Black, White
  • Grey Scale: 2
  • Full Refresh Time: 15s
  • Refresh Power: 26.4mW (typ.)
  • Standby Current: <0.01uA (almost None)
  • Viewing Angle: >170°

Dimensions

Pinout



Resources

Pico e-Paper 2.13 B - Waveshare Resources
