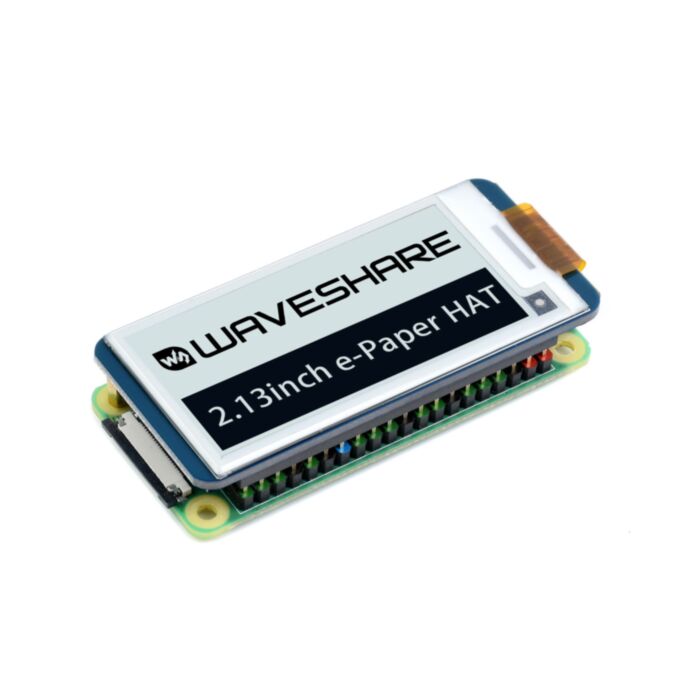

2.13 inch E-Ink 2-colour HAT (250x122 Pixels)

Rating:
100% of 100
SKU: WS-12915 Brand: Waveshare
250x122, 2.13inch E-Ink display HAT for Raspberry Pi, SPI interface...
$24.70 AUD, inc GST
$22.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $21.55 (exc GST)
  • 25+ $20.88 (exc GST)
- +

30 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Note: These are V4 units, check the product wiki below for further information!

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Note: This display does not include a Raspberry Pi, check out our Raspberry Pi boards category

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 250 × 122
  • Display color: black, white
  • Grey level: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typical)
    • 5.3mA @ 5V
    • 8mA @ 3.3V
  • Standby power: <0.017mW
  • Viewing angle: >170°

Onboard Connector

Pin name Description
VCC 3.3V/5V
GND Ground
NC No Connect (leave floating)
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active

Dimensions





Development Resources

Wiki for 2.13 inch E-Ink 2-colour HAT (250x122 Pixels)

Ships with:

  • 1x 2.13inch e-Paper HAT
  • 1x RPi screws pack (2pcs)
  • 1x PH2.0 20cm 8Pin
