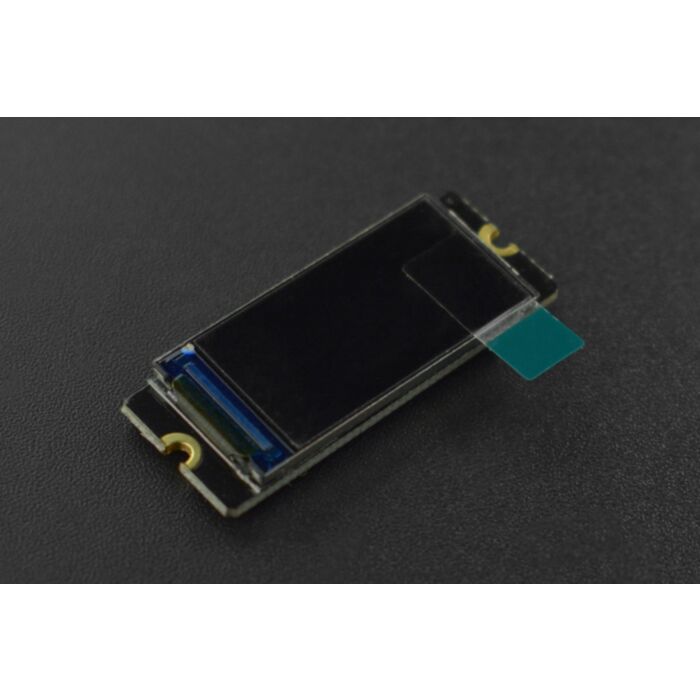

0.96"160x80 Color SPI TFT Display

Rating:

100% of 100

SKU: DFR0847 Brand: DFRobot

This 0.96”TFT display employs edge-to-edge design and offers glorious 160×80HD 16-bit color display, which can be suitable for wearable projects, mobile...

$15.30 AUD, inc GST

$13.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 09 and Jun 12

Quantity Discounts:

10+ $13.35 (exc GST)
25+ $12.94 (exc GST)

Small and exquisite, this 0.96”TFT screen employs an edge-to-edge design and offers glorious 160×80HD 16-bit color display, which can be suitable for wearable projects, mobile devices and smart home products.

It supports DFRobot GDI display interface and can be conveniently connected to your GDI main-controller with FPC, plug and play, and easy to wire!

Compatible with 3.3V to 5V, the display consumes current less than 15mA in full-screen. It works well with controllers like Arduino UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc

Board-Overview

Features

TFT material, better display effect
GDI interface, no soldering required
Narrower PCB, easy to be integrated into small projects

Applications

Wearable projects
Mobile devices
Smart home products.

Specification

Operating Voltage: 3.3V-5V
IPS Viewing Angles: 60/ 60/ 60/ 60
Color Depth: 16-bit (RGB565)
Pixels: 160x80
Interface: SPI
Driver Chip: ST7735
Luminance: 250 (Typ) cd/m2
Power Consumption of Full Screen: 15mA
Operating Temperature: -30°C ~ +70°C
Display Area: 10.8 x 21.7 mm/ 0.43 x 0.85"
Dimension: 13.5 x 34 mm/ 0.53 x 1.34"

Documents

Parts List

0.96"160x80 Color SPI TFT Display x1
2.54 Black Single Row Connector-10P x1
FPC0.5-18PIN Reverse Direction 10cm x1
