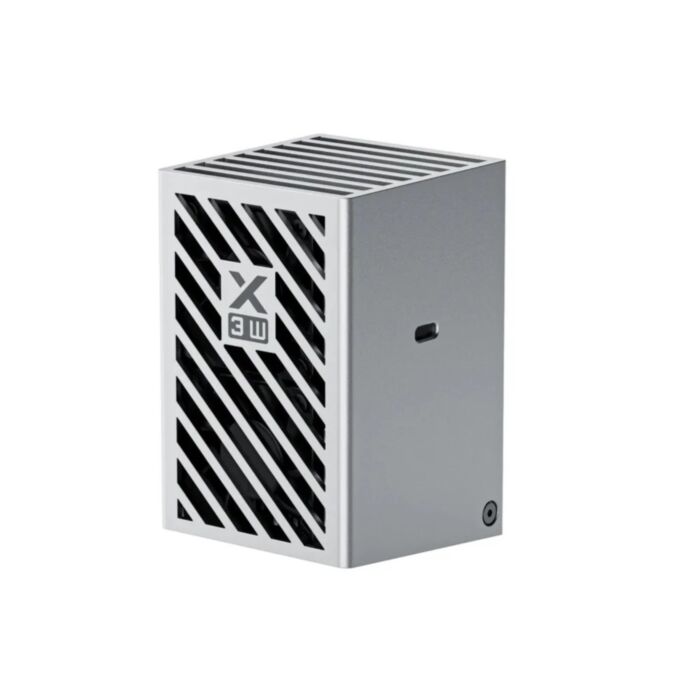

xTool M2 3W Infrared Laser Module - 1064nm
Adds true metal engraving to your colour craft laser - permanent marks on jewellery, tools and tumblers, with no unnecessary steps.
Available with a lead time
Expect dispatch between Sep 21 and Sep 21
This product incorporates a laser system. Before purchasing or using laser equipment (including modules, components, or complete machines such as laser cutters and engravers), please consider the following:
- These products are intended for professional, educational, industrial, or supervised workshop environments.
- Operators should be appropriately trained and understand laser safety practices, including enclosures, signage, PPE, and safe operating procedures where applicable.
A declaration of use will need to be submitted during checkout.
Diode lasers bounce off shiny metal. Infrared light at 1064nm doesn't - it is absorbed straight into the surface, so stainless steel, aluminium, brass, copper, titanium and precious metals take a distinct, permanent mark with no marking spray or extra processes.
Built exclusively for the xTool M2, this module fits the same multi-function module holder as the diode head, so one machine covers both cutting and bare-metal marking. Two locating pins on the back align it into position, a single module cable connects it, and the M2 recognises it in xTool's software - swapping heads is an easy couple of minutes' work.
Metals aren't the whole story either. The infrared wavelength also bites into engineering plastics and rubber where a diode module produces weak, low-contrast results, opening up phone cases, chargers, earbud cases, candle lids and technical labels.
Features
Marks bare metal directly - no consumable marking spray, and nothing to fade or rub away afterwards
Produces high-contrast results on engineering plastics and rubber, where diode modules tend to leave faint or inconsistent marks
Swaps in and out without tools, so the M2 moves between diode cutting and infrared marking as the project demands
650nm red indicator laser lets you confirm placement on the workpiece before firing
Tight beam divergence holds fine detail — small text, serial numbers and intricate logos stay legible
Lens protector and nozzle are user-serviceable and replaceable, so routine cleaning keeps output power consistent over the module's life
Official xTool part — guaranteed mechanical fit, electrical compatibility and software support
Specifications
Property | Specification |
|---|---|
Working laser wavelength | 1064 nm |
Maximum power output | 3.3 W |
Beam divergence | 1.5 mrad (IEC 60825-1) |
Indicator laser | 650 nm, 390 µW |
Operating temperature | 0 °C to 35 °C |
Compatibility | xTool M2 |
Resources
xTool M2 Support Centre — machine guides, material settings and troubleshooting
What's Included
1x xTool M2 3W infrared laser module
1x Art scratch paper
1x User manual
