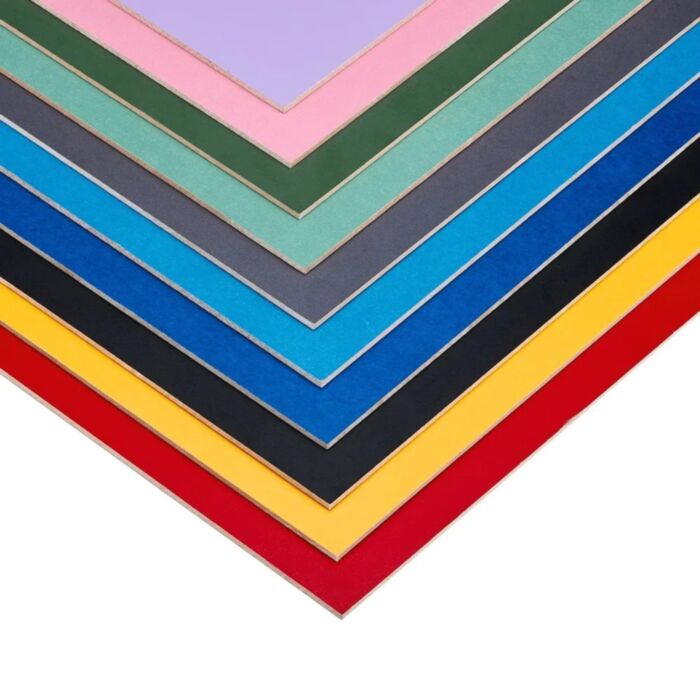

3mm Multi-Coloured MDF Board (10pcs)
Ten colours of 3 mm laser-ready board, flat, burr-free and cut to a 30 cm square. Loads its own tested cut settings from the adhered QR code.
Available with a lead time
Expect dispatch between Oct 26 and Oct 26
Ten colours of flat, laser-ready panel stock cut to a standard 30 cm or 12-inch square - ready to cut and engrave straight out of the packet, with no priming, painting or sealing first.
MDF board is dense and dimensionally stable: it resists breaking and deforming, the surface is flat and smooth, and the edges arrive neat and free of burrs. Flatness matters more than it sounds on a laser bed, because a bowed sheet drifts out of focus across a 305 mm span and turns a clean cut into a tapered one.
Each pack carries a Material QR code for xTool's EasySet system. Place the code card on the bed and hit Refresh background, and the machine loads tested power, speed and pass settings for this exact board - no test grid, no guesswork. Camera-equipped P series and F series machines scan it automatically; F1, S, M1U and D machines can scan it manually.
Features
- Ten colours in a single pack = Black, Grey, Navy Blue, Light Blue, Dark Green, Light Green, Light Purple, Pink, Yellow and Red - enough range to trial a colourway before committing to full sheets.
- Stays flat in storage and on the bed, holding focus across the full 305 mm span.
- Burr-free factory edges mean parts drop out clean and need no sanding before assembly.
- Resists breaking and deforming, so thin cut parts survive handling, transport and press-fit assembly.
- Material QR code loads tested EasySet parameters, removing the test-grid step on every new pack.
- 3 mm nominal thickness suits press-fit slot joints, layered signage and free-standing displays.
Specifications
| Material | MDF (medium-density fibreboard) |
| Quantity | 10 sheets |
| Colours | Black, Grey, Navy Blue, Light Blue, Dark Green, Light Green, Light Purple, Pink, Yellow, Red |
| Sheet dimensions | Approx. 305 x 305 mm |
| Thickness | 13 mm nominal, tolerance +/-15% |
| Pack weight | 2.2 kg |
| Compatible machines | All xTool machines, 10W to 55W (excludes the 2W infrared laser) |
| Processing modes | CO2 engraving and cutting; blue-light engraving, cutting and embossing; fibre laser engraving; MOPA engraving; infrared engraving |
What's Included
- 10x Multi-Coloured MDF Board sheets
