Wio Terminal LoRaWan Chassis with Antenna- built-in LoRa-E5 and GNSS, EU868/US915
Available with a lead time
Expect dispatch between Mar 12 and Mar 14
Quantity Discounts:
- 6-12 $76.02 (exc GST)
- 12+ $73.64 (exc GST)
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
Features
Powerful LoRa module: use extremely compact, and high-performance LoRa-E5 module
Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan
Worldwide Compatibility: wide frequency range including EU868/US915/AU915/AS923/KR920/IN865
Long-distance transmission range to 10km (ideal value in open area)
GNSS module(Quectel L76-LB) support GPS, GLONASS and BeiDou
Compatible Arduino
Ultra-low-power design
Description
Wio Terminal Chassis - LoRa-E5 and GNSS is a LoRaWAN communication extension board for Seeed Wio-Terminal Dev Board. It is embedded with the LoRa-E5 STM32WLE5JC Module, which is the world-first combo of LoRa RF and MCU chip into one single tiny chip. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations. (Learn more about LoRa-E5)
The GNSS module is the Quectel L76-LB. It supports concurrent reception of GPS, GLONASS, BeiDou and QZSS. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, it can acquire and track any mix of GPS, GLONASS (or BeiDou) and SBAS signals.
With Wio-Terminal + Wio Terminal Battery Chassis + Wio Terminal Chassis - LoRa-E5 and GNSS, you can easily build the a powerful compact, and cost-effective IoT device with the extended Grove Ports, you can enjoy the plug-and-play features of the Grove Ecosystem with over 300 Grove modules!Applications
LoRaWAN GPS Tracker
LoRaWAN Field Tester
Smart Agriculture
Smart Cities
Smart Factory
Rapid prototyping of LoRa devices with Wio Terminal
Any long-distance wireless communication application development
LoRa and LoRaWAN application learn and research

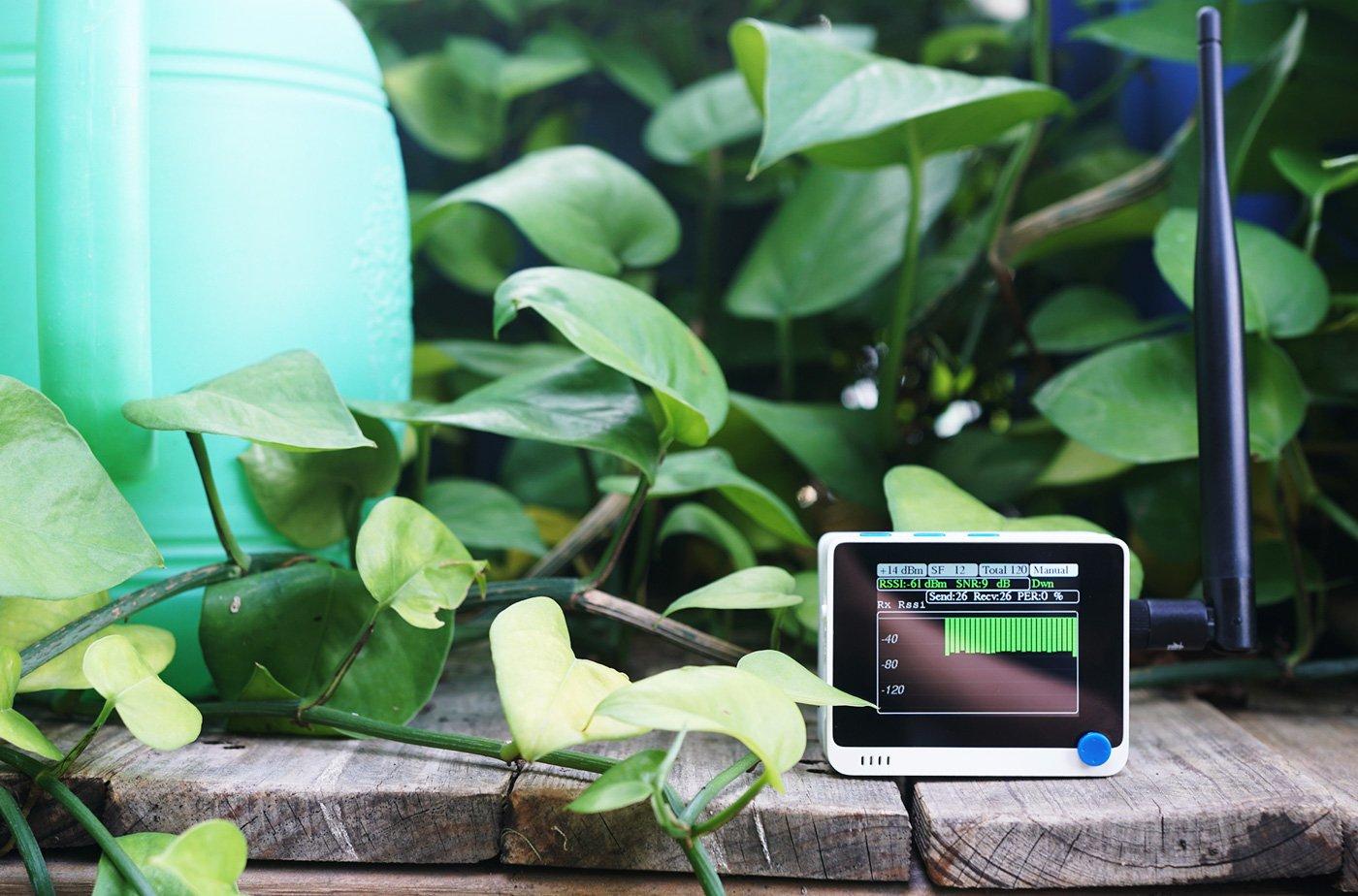

The LoRaWAN Gateway Tester is a multipurpose portable tool that can detect the coverage of your LoRaWAN gateways. It will then apprise you of whether the signal is in a normal range. Designed to make the deployment of a LoRaWAN network easier, the LoRaWAN Gateway Tester will help you determine the optimum location for your LoRaWAN gateway deployment. Please check the tutorial and libraries here .
Prior to developing this, we checked out the LoRa tester market; the price usually ranges from $200 to $500, however, some of them lack a backend application to report the network signal, current time, status, and several other critical information. Therefore, we decided to bring a low-cost version ourselves that is able to do more! This project is based on Paul Pinault’s WioLoRaWANFieldTester report. We are honoured to have access to his link and we thank him for his contributions. We combined Paul Pinault’s natty UI for the Wio terminal with LoRa-E5 and GNSS modules to produce the function of the LoRaWAN Gateway Tester.Project 2: LoRa Node with WioTerminal- IoT Smart Garden Monitor
Specification
Parameters
Specifications
Voltage - supply
3V3
LoRa-E5
Frequency
EU868 / US915 / AU915 / AS923 / KR920 / IN865
Protocol
LoRaWAN
Sensitivity
-116.5dBm ~ -136dBm
modulation
LoRa, (G)FSK, (G)MSK, BPSK
Quectel L76-LB
Receiving Bands
GPS L1/Galileo E1 C/A: 1575.42MHz
GLONASS L1 C/A: 1602.5625MHz
BeiDou B1 C/A: 1561.098MHz
Channel
33 Tracking Channels
99 Acquisition Channels
210 PRN Channels
Sensitivity
Acquisition: -148dBm
Tracking: -165dBm
Reacquisition: -160dBm
Interfaces
Wio Terminal 40-PIN(2x20 Male Headers)
Enclosure
Dimension
72mm*57mm*12mm
Materials
3D Printing with ABS
Part List
- Wio Terminal Chassis - LoRa-E5 and GNSS *1
- Antenna(EU868/us915) *1
Documentations
LoRa-E5 datasheet and specifications
