Wio Tracker L1 Lite

SKU: SS114993653 Brand: Seeed Studio

Pre-flashed Meshtastic firmware for instant Long-Range GPS tracking and communication in a small and flexible form factor.

$58.90 AUD, inc GST

$53.55 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 11 and Aug 11

The Wio Tracker L1 Lite is a versatile GPS and LoRa tracking device designed for flexible outdoor and mobile applications. Its pre-flashed Meshtastic firmware allows instant setup for location tracking and messaging over long-range networks, making it ideal for projects requiring connectivity in places with existing Meshtastic forwarders. Its triple power supply options: Type-C fast charging, solar input, and a Li-ion battery interface give the flexibility these kinds of devices require.

Technical Specifications

Processor	Nordic nRF52840 ARM® Cortex®-M4 with FPU, up to 64 MHz
Memory	1 MB flash, 256 kB RAM
Wireless	LoRa (Wio-SX1262, 862–930 MHz), Bluetooth 5.0
GPS Module	L76K (supports GPS, BeiDou, GLONASS, QZSS)
Screen Interfaces	1.3" OLED or 2.13" E-Ink (optional)
Expansion Interfaces	Grove (UART/IIC/GPIO), PTH (UART/IIC/GPIO/Analog), SWD debugging interface
Power Supply	Type-C 5 V/1 A, Solar interface 5 V/1 A, Battery interface 3.7 V/1 A
Certifications	FCC, CE, RoHS

How to Use/Installation

Attach the included LoRa and GPS antennas.
Connect a suitable power source using Type-C, solar input, or Li-ion battery according to your deployment.
If your project requires it, leverage the Grove interface to add compatible sensors or modules to extend functionality.
Use the pre-flashed Meshtastic firmware for immediate long-range GPS tracking and messaging with minimal setup.
For development, access the SWD debugging interface and available soldering pads to customise firmware or hardware.

Compatibility

Grove modules (UART, IIC, GPIO)
Type-C power supplies supporting 5 V/1 A output
Solar panels providing 5 V/1 A input
3.7 V Li-ion batteries

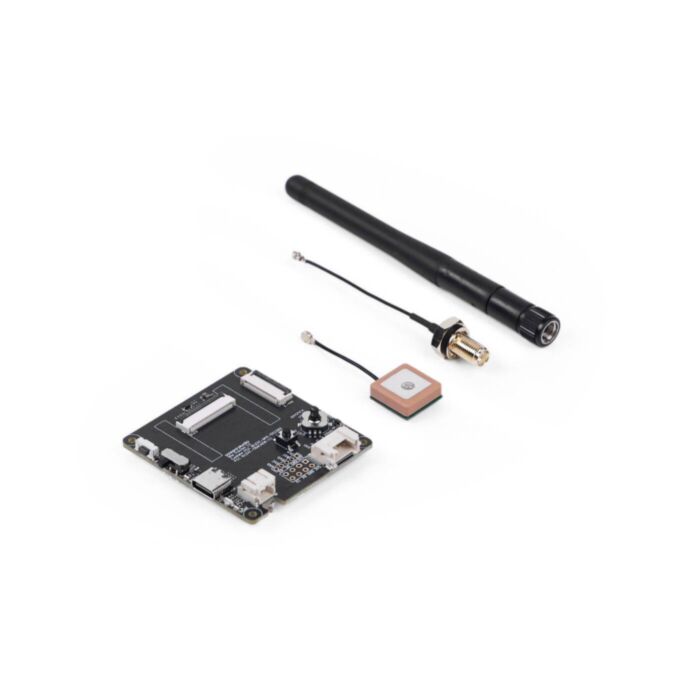

What’s Included

Wio Tracker L1 Board ×1
LoRa Antenna ×1
GPS Antenna ×1
60mm RF Cable (RP-SMA Female to IPEX) ×1

Resources

Wiki for Wio Tracker L1 Lite

This product is listed in:

Wireless>GPS>Modules
Wireless>Meshtastic
