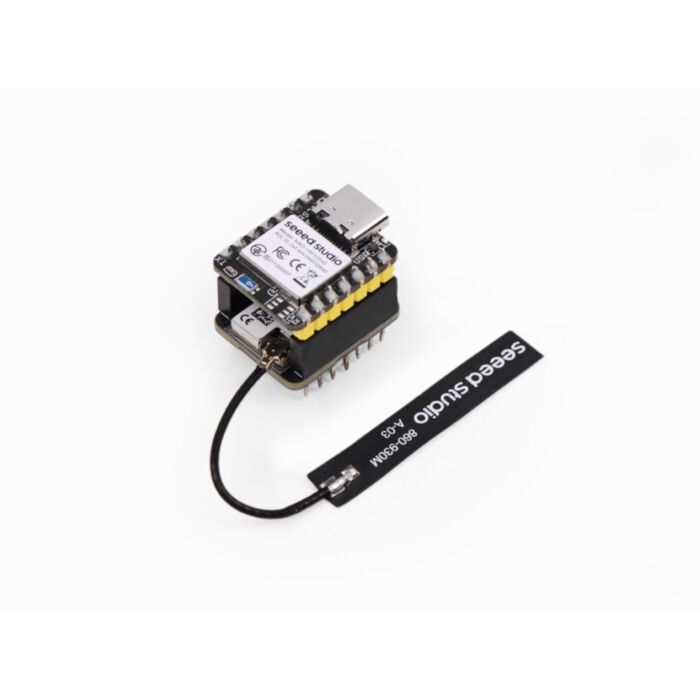

XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic

SKU: SS102010710 Brand: Seeed Studio

A compact kit combining a Xiao Nordic nRF52840 microcontroller with Semtech SX1262 LoRa module for Meshtastic and other projects.

$25.70 AUD, inc GST

$23.36 AUD, exc GST

Out of Stock

The XIAO nRF52840 & Wio-SX1262 Kit is an ultra-compact, dual-communication development kit designed for Meshtastic applications, offering reliable long-range wireless connectivity combined with power efficient microcontroller performance.

This kit allows developers, educators, and hobbyists to build Meshtastic nodes or LoRa-enabled sensors with ease, ideal for remote tracking, environmental sensing, and expanding community networks where Bluetooth and LoRa connectivity are essential.

Technical Specifications

Component	Details
XIAO nRF52840	Nordic nRF52840 ARM® Cortex®-M4 with FPU, up to 64 MHz
Wio-SX1262	Semtech SX1262 LoRa module supporting 862-930 MHz frequencies
Wireless	Bluetooth 5.0 and NFC support, LoRa long-range wireless
Interface	XIAO nRF52840: 1× UART, 1× I2C, 1× SPI (connects to SX1262), 1× NFC, 1× SWD, 11× GPIO (PWM), 6× ADC Wio-SX1262: 1× SPI (connects to XIAO nRF52840)
Power	Type-C input: 5V; Battery input: 4.2V; Charging current: 50mA/100mA; Standby power consumption: <5µA
Operating Temperature	-40°C to 65°C
Dimensions	21 × 17.8 mm
Kit Dimensions	8 × 22 × 23 mm (with integrated antenna)

How to Use/Installation

Connect the Wio-SX1262 extension board to the XIAO nRF52840 development board using the SPI interface.
Attach the supplied LoRa antenna securely to the Wio-SX1262 module for optimal long-range communication.
Power the kit via Type-C USB or a compatible 4.2V battery.
Program the XIAO nRF52840 using Arduino, CircuitPython, or MicroPython environments depending on your preference and application requirements.
Deploy your node as a Meshtastic device or integrate with external sensors such as the XIAO L76K GPS module for enhanced tracking and sensor applications.

Compatibility

Compatible Device/Platform	Support Details
Arduino IDE	Full library support for nRF52840 microcontroller
CircuitPython	Supported via Nordic nRF52840 compatible builds
MicroPython	Supported for rapid prototyping and scripting
Meshtastic Network	Ready to serve as nodes or routers for mesh networking
XIAO L76K GNSS Module	Compatible for GPS tracking use cases

Additional Resources

What’s Included

XIAO nRF52840 development board ×1
Wio-SX1262 extension board ×1
LoRa antenna ×1
