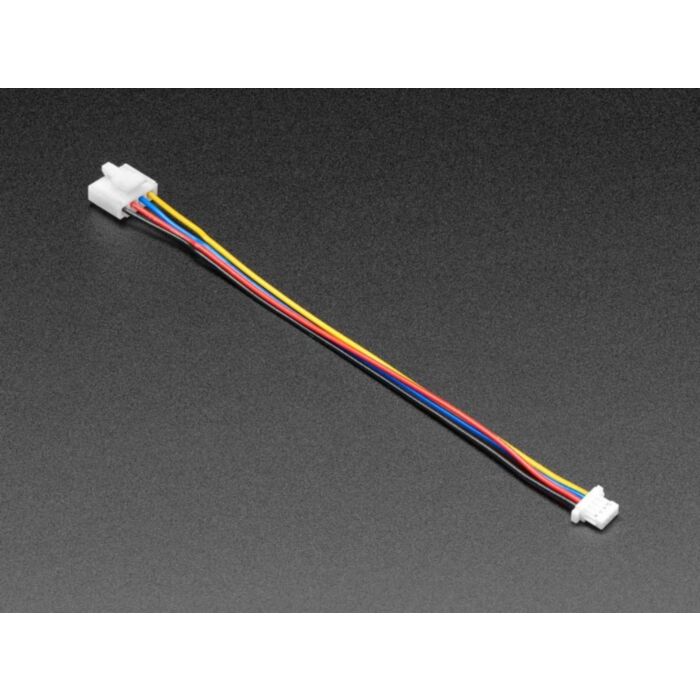

Grove to STEMMA QT / Qwiic / JST SH Cable - 100mm long

Rating:

100% of 100

SKU: ADA4528 Brand: Adafruit

Are you a maker in the midst of a STEMMA dilemma? This 100mm long cable is a fantastic chimera-cable fitted with STEMMA QT / Sparkfun Qwiic JST SH on one end, and...

$3.85 AUD, inc GST

$3.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 22nd of Nov

Quantity Discounts:

10-25 $3.36 (exc GST)
25+ $3.25 (exc GST)

Are you a maker in the midst of a STEMMA dilemma? This 100mm long cable is a fantastic chimera-cable fitted with STEMMA QT / Sparkfun Qwiic JST SH on one end, and a Grove connector on the other.

This cable can be used with STEMMA or STEMMA QT / Qwiic boards to easily connect sensors and drivers from one board to the other.

Please note you will have to watch for voltages on the power/signal pin when using 3V-only Qwiic sensors with this cable!

You can use this to connect any Grove I2C sensor (3-5V) to an I2C host with Stemma QT or Qwiic connectors (3V)
You can use this to connect any STEMMA QT (3-5V) sensor to Grove or STEMMA host (5V) board, and vice versa
Warning: If you want to connect a Qwiic board (3V power only!) to a Grove or STEMMA host, make sure the power switch is set to 3V

The colors are:

Black for GND
Red for V+ - For Qwiic boards, 3.3V. For STEMMA QT, 3 to 5V.
Blue for SDA
Yellow for SCL

For more information on JST, visit their website.

Check out all Adafruit's STEMMA QT offerings here including a wide range of lengths and connectors
