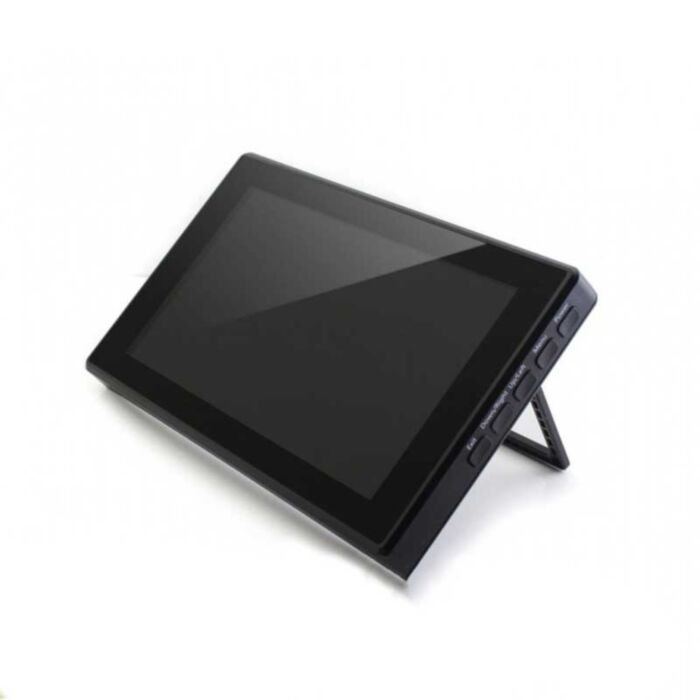

Waveshare 7inch LCD IPS 1024x600 (with case)

Rating:
90% of 100
SKU: CE06732 Brand: Waveshare
A 7inch display that comes with a case is a sturdy interface for a portable microcomputer setup
$109.95 AUD, inc GST
$99.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 26th of Feb

Quantity Discounts:

  • 5-10 $96.95 (exc GST)
  • 10+ $94.95 (exc GST)
- +

9 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A 7inch display that comes with a case is a sturdy interface for a portable microcomputer setup

  • 7inch IPS screen,1024x600 hardware resolution, configurable by software (up to 1920x1080)
  • Toughened glass capacitive touch panel, 6H hardness
  • Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
    • When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • 3.5mm audio jack, supports HDMI audio output
  • Also supports VGA input (specific cable is required and should be purchased separately)
  • High quality polycarbonate case around the bare LCD board, optional tilt angle: 30°/50°
  • Only 0.410kg

Note:

  • Limited by the game console OS, the touch function is unavailable.
  • Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Contains

Note: Raspberry Pi is NOT included.

  • 7inch HDMI LCD (H) (with case) x1
  • HDMI cable x1
  • HDMI to Micro HDMI Adapter x1
  • USB type A plug to micro B plug cable x1
  • Quick start sheet x1

Development Resources

7inch-HDMI-LCD-H-with-Holder-dimension
