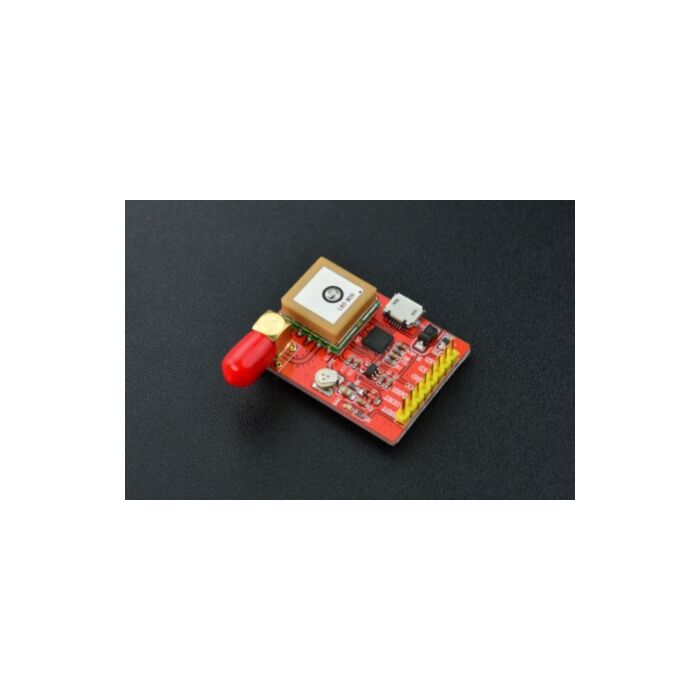

USB/TTL Raspberry Pi GPS Tracker

Rating:
100% of 100
SKU: TEL0119 Brand: DFRobot
USB/TTL Raspberry Pi GPS tracker is a small GPS location module. It is using L80-39 GPS chip, which includes 66 search channels and 22 simultaneous tracking channels...
$61.19 AUD, inc GST
$55.63 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 13

Quantity Discounts:

  • 6+ $54.79 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

USB/TTL Raspberry Pi GPS tracker is a small GPS location module. It is using L80-39 GPS chip, which includes 66 search channels and 22 simultaneous tracking channels. These features can improve its satellites connection speed.

GPS tracker has USB and TTL two ports, it is easy to be used with Raspberry Pi, Arduino, STM32 and other kind of micrcontrollers. And it is totally compatible with most of Raspberry Pi, like Raspberry Pi 3 Model B, Raspberry Pi 2 Model B, A+, B+, Zero .etc.

The GPS module uses NMEA0183 communication protocol, integrated ultra-small SMA antenna connector.

FEATURES

  • -165 dBm sensitivity, 1Hz (Default), up to 5Hz, 66 channels
  • At least 100mA current draw to startup.
  • PPS output can be used to coordinate time with satellite.
  • Internal patch antenna which works quite well when used outdoors SMA connector for external active antenna for when used indoors
  • Fix status LED blinks to let you know when the GPS has determined the current coordinates
  • EASY™, advanced AGPS technology without external memory
  • Support time service application which can be achieved by PPS sync NMEA feature
  • Built-in LNA for better sensitivity
  • RTC battery-compatible
  • 1x8 male headers, USB micro Interface
  • includes CP2102 Module Serial Converter USB 2.0 To TTL UART

  • Specification

  • Operating Voltage: 3.3v-5.0VDC
  • Maximum Operating Current: 100mA
  • GPS Model: L80-39
  • Positioning Accuracy: <2.5m CEP
  • Speed Accuracy: <0.1 m / s
  • @ -130dBm not using EASY ™ technology cold start time: <35s
  • @ -130dBm using EASY ™ technology cold start time: <15s
  • Capture Sensitivity: -148dm
  • Tracking Sensitivity: -165dm
  • Update rate: default 1Hz, maximum 5Hz
  • Data Format: NMEA0183 protocol
  • Channel: 22 (track) / 66 (capture)
  • Serial Baud Rate: 9600 bps (default )
  • Operating Temperature: -40 ~ +85°C
  • Connection Method: 8 pin x2.54 pitch pin, USB micro data cable
  • Antenna Connector Type: Standard SMA connector
  • Antenna Connector Size: 15 * 15 * 4 (mm)
  • Dimension: 39.1 * 29.0 (mm) / 1.54 * 1.14 inches
  • Weight: 4.35g

  • Documents

  • Product WIKI

  • Parts List

  • USB / TTL Raspberry Pi GPS Tracker x1
  • MicroUSB Cable x1
  • F / F DuPont wire x10
