Universal Proto-board PCB 6cm x 8cm - 2mm pitch

SKU: ADA5588 Brand: Adafruit

Here's a handy 6cm x 8cm Proto-board PCB that is meant for use with 2mm pitch parts - like maybe an XBee. Both sides have a green silkscreen with some...

$4.55 AUD, inc GST

$4.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 17th of Dec

Quantity Discounts:

10-25 $3.97 (exc GST)
25+ $3.85 (exc GST)

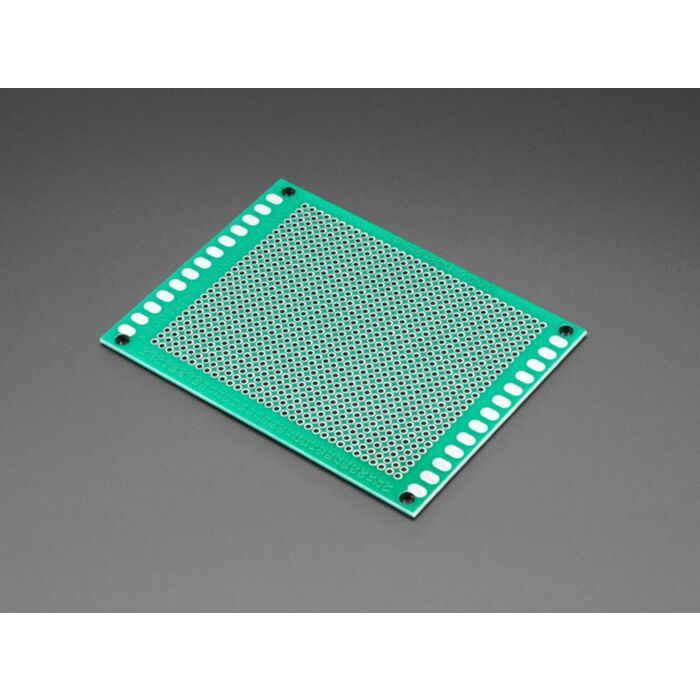

Here's a handy 6cm x 8cm Proto-board PCB that is meant for use with 2mm pitch parts - like maybe an XBee. Both sides have a green silkscreen with some row/column markings. Note that these don't have any traces between the PCB holes; you would normally bend over a thru-hole lead to create connections. They're also good for just plain mechanical work because they are made of strong FR4.

Contains 33 X lines by 26 Y lines totaling 858 holes. There are also four mounting holes so you can attach the PCB to your project box.

Please note: this proto-board is designed with 2mm pitch not the standard 2.54mm / 0.1" pitch you may be used to!

Technical Details

Mounting holes
- Diameter: 3mm
- Length mounting hole distance: 72.5mm
- Width mounting hole distance: 55mm
