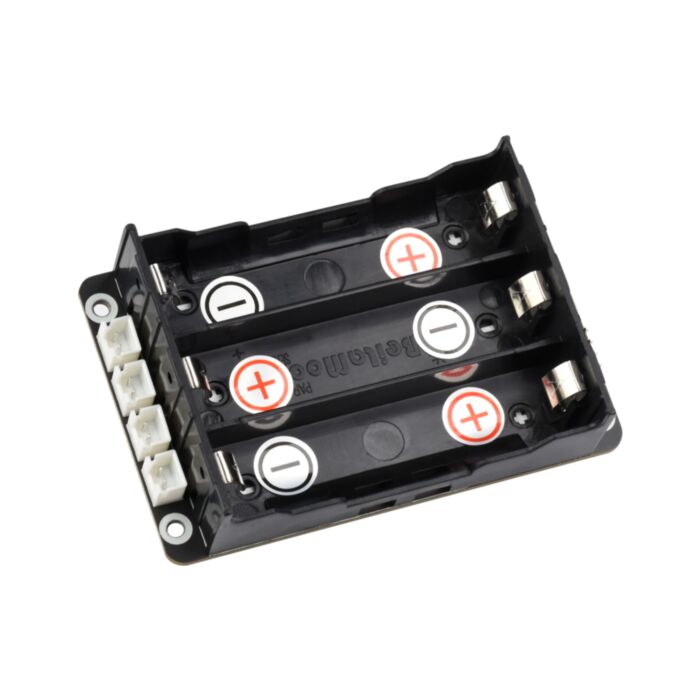

UPS Module with 5V and 3S LiPo Output

Rating:
100% of 100
SKU: CE09375 Brand: Waveshare
Uninterruptible Power Supply (UPS) Module, Supports charging And Power output at the same time, 3S & 5V 5A Output...
$43.10 AUD, inc GST
$39.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 28th of May

Quantity Discounts:

  • 10-25 $38.01 (exc GST)
  • 25+ $37.22 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Uninterruptible Power Supply (UPS) Module, Supports charging And Power output at the same time, 3S & 5V 5A Output

Supports charging and power output at the same time, ~12.6V (Raw Series LiPo Voltage) & 5V 5A output

* 3S indicates that powered by 3x 18650 Li batteries in series, the output range is about 9V~12.6V

Note: Requires 12.6V LiPo Charger or a Multi-Cell Programmable charger

Features

  • I2C bus communication, monitoring the batteries voltage, current, power in real time
  • Multi battery protection circuits: overcharge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature
  • Onboard 5V regulator, up to 5A continuous output current
  • Batteries warning indicators, easy to check if the battery is connected correctly

Specifications

Output voltage Batteries series voltage; 5V 5A; 3.3V 300mA
Control interface I2C
Battery support 3 x 18650 Li batteries (in series, NOT included)
Required Charger 12.6V 2A
Dimensions 60 × 93mm
Mounting hole size 3.0mm



Pinout





What's On Board





  1. S-8254AA Li battery protection
  2. SY8286 5V voltage regulator
  3. HY2213Equalizing charge
  4. INA219 Voltage/current monitoring
  5. RT9193 3.3V voltage regulator
  6. NDC7002N Voltage translator
  7. AO4407A Battery protection MOS tube
  8. Power port 12.6 2A power input
  9. Power output switch
  10. Batteries series power output
  11. 5V power output
  12. Reverse warning indicators
  13. Multi-functional expansion header
  14. I2C level selection 3.3V (default) / 5V



Dimensions





Resources

Wiki for UPS Module

Shipping List

  1. UPS Module 3S x1
  2. XH2.54 male self lock button switch ~15cm ×1
  3. XH2.54 male to DC5521 (5.5x2.1mm Barrel Jack) female cable ~15cm x1
  4. XH2.54 dual connector cable ~15cm ×1
  5. XH2.54 male to Type-C cable ~20cm x1
  6. Acrylic protection panels x1
  7. Screws pack ×1
