Triple Output High Power RGB LED

SKU: COM-15200 Brand: Sparkfun Guides (1)

This 3W per channel, Triple Output High Power RGB LED is sure to shed a lot of light on any project you add it to...

$9.40 AUD, inc GST

$8.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $8.29 (exc GST)
25+ $8.12 (exc GST)

So much power and light from such a small package. This 3W per channel, Triple Output High Power RGB LED is sure to shed a lot of light on any project you add it to. This LED acts as any other LED except they require much more power while delivering a light as intense of a thousand suns going super nova (this is an exaggeration but you know what Sparkfun mean)!

Please be aware that with all three LEDs (9W total output), you will need additional heat sinking.

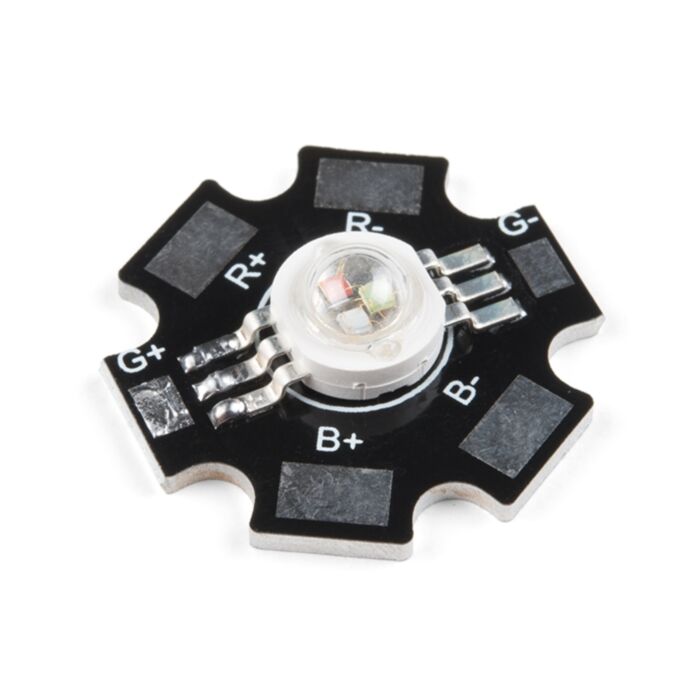

This LED sits upon an aluminum backed PCB to help with heat dissipation but with a 9W total output, additional heat sinking will be required. Additionally, each LED requires an operating voltage of 2.2-2.6V for red, 3.2-3.8V for green, and 3.2-3.8V for blue.

Note: Sparkfun like to joke around about super novas and all, but seriously, don't look directly into the LED.

Size (approx.): 18mm (D) x 8mm (H)
Aluminum PCB for thermal dissipation
Operating Voltage:
- Red: 2.2-2.6V
- Green: 3.2-3.8V
- Blue: 3.2-3.8V
Wavelength:
- Red: 620nm
- Green: 520nm
- Blue: 460nm
Viewing Angle: 140°
Current Draw: 20mA per colour

Datasheet
Lumen to MCD Calculator
Related Hookup Guides:
- PicoBuck LED Driver Hookup Guide
- FemtoBuck LED Driver Hookup Guide
