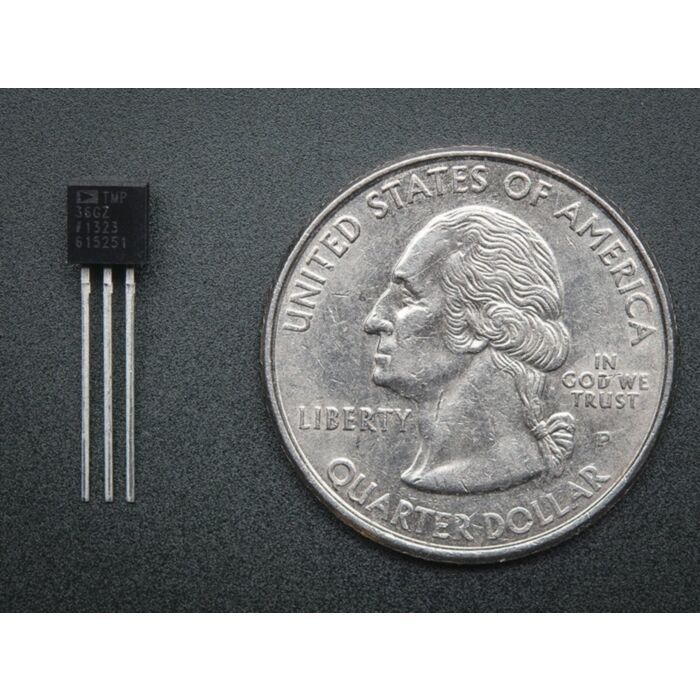

TMP36 - Analog Temperature sensor - TMP36

SKU: ADA165

$2.95 AUD, inc GST
$2.68 AUD, exc GST
TMP36 - Analog Temperature sensor - TMP36
2.95 AUD

SKU: ADA165

$2.95 AUD, inc GST
$2.68 AUD, exc GST
2 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Wide range, low power temperature sensor outputs an analog voltage that is proportional to the ambient temperature. To use, connect pin 1 (left) to power (between 2.7 and 5.5V), pin 3 (right) to ground, and pin 2 to analog in on your microcontroller. The voltage out is 0V at -50°C and 1.75V at 125°C. You can easily calculate the temperature from the voltage in millivolts: Temp °C = 100*(reading in V) - 50

See the webpage for datasheets and more information. For a full tutorial with wiring diagrams, code examples and project ideas, please read the temp. sensor tutorial page!

Technical Details

Dimensions:

  • Length: 3.5mm / 0.14"
  • Width: 4.6mm / 0.18"
  • Height: 19mm / 0.74"
  • Weight: 0.2g

This product is listed in:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Amos verified purchaser
    Rating
    100

    While not the most accurate temperature sensor going around, this TMP36 is very simple to use. As it is an analog device, to hook it up to a Raspberry Pi you will need an ADC (the MCP3008 works great) and there are tonnes of references on the interwebs explaining how to do this. If you want to play around with detecting the temperature, this is a cheap way to get started. (Posted on 16/06/2018)

  2. Review by Rick verified purchaser
    Rating
    100

    I had some problems getting accurate and consistent temperatures from the TMP36 via an Arduino UNO but the solution was to use "analogReference(DEFAULT)" and a 5 V power supply. Follow struggles on-line at http://forum.arduino.cc/index.php?topic=522128.new#new (Posted on 15/01/2018)
