Thermocouple Type-K Glass Braid Insulated Stainless Steel Tip

Rating:

100% of 100

SKU: ADA3245 Brand: Adafruit

Thermocouples are best used for measuring temperatures that can go above 100°C. This is a bare wires stainless-steel tip probe which can measure air or surface temperatures...

$19.80 AUD, inc GST

$18.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $17.46 (exc GST)
25+ $17.10 (exc GST)

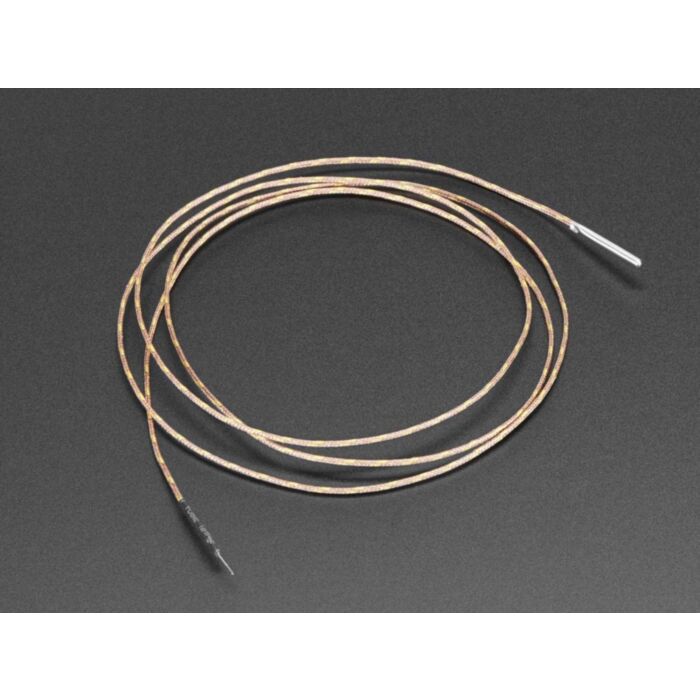

Thermocouples are best used for measuring temperatures that can go above 100°C. This is a bare wires stainless-steel tip probe which can measure air or surface temperatures. Most inexpensive thermocouples have a vinyl covering which can melt at around 200°C, this one uses a fiberglass braid so it can be used in high temperature measurements such as heaters and ovens. There's a small piece of heat shrink on the connector ends of the wire to keep the fiberglass from fraying, and a 2 cm long, 2mm diameter stainless steel probe on the opposite end.

K type thermocouple with glass over-braiding
Good for temperatures between -100°C to 500°C (-148°F to 900°F)!
Color-coded wires
1 meter long (a little more than 3 feet)
Best used with a thermocouple amplifier such as the MAX31855, AD8495 or MAX31856

Adafruit have a handy tutorial which covers thermocouple use including an Arduino library and example code! Also make sure to check the guide for the thermocouple amplifier you choose.

Technical Details

Wire length end-to-end: 39"
