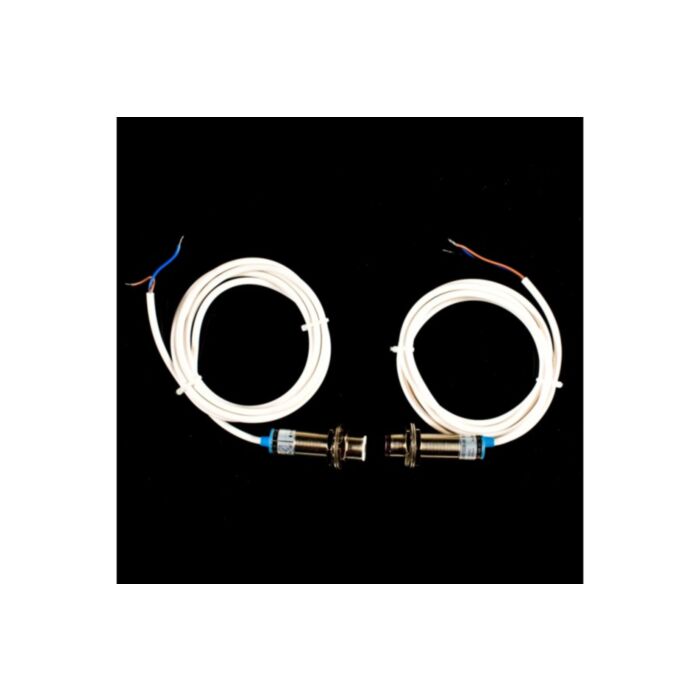

The Laser Photoelectric Switch GAB100M-AK-5V

SKU: FIT0319 Brand: DFRobot
This is a photoelectric switch that is composed of emitter and receptor.The emitter consists of a laser diode,and the laser has the characteristics of high precision, good orientation etc.The receptor consists of a photoelectric element.When receiving the laser pulse, the built-in light conducting.The emitter and receptor can assemble a detector. It can be directly compatible with Arduino to develop related products .Of course,it is also very suitable for photoelectric counting, security, ultra-high vehicle overrun detection etc.
$89.45 AUD, inc GST
$81.32 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 13 and Mar 19

Quantity Discounts:

  • 6-12 $78.88 (exc GST)
  • 12+ $77.25 (exc GST)

This equipment uses a laser and has the following restrictions:

  • the equipment is not intended for sale to the general public
  • the equipment is intended to be used in trades, professions or industries
  • the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
  • the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a photoelectric switch that is composed of emitter and receptor.The emitter consists of a laser diode,and the laser has the characteristics of high precision, good orientation etc.The receptor consists of a photoelectric element. Combined, they make a useful sensor setup for photoelectric counting, security, speed detection etc..  It can be directly compatible with Arduino to develop related products.

Specification

  • Voltage: 5VDC
  • Power(Emitter): 30mW
  • Interface of the receiver: Digital
  • Directly support Arduino processor
  • Pointing Angle: 3?
  • Corresponding Time: <5ms
  • Detection Range: 65M (2559")
  • Protection grade: IP66
  • Size: 65*M18 (mm)
  • Laser class: 3R (staring into the beam can cause retina damage)

Documents

Parts List

  • Laser Emitter(With Wires) ×1
  • Laser Receptor(With Wires) ×1
