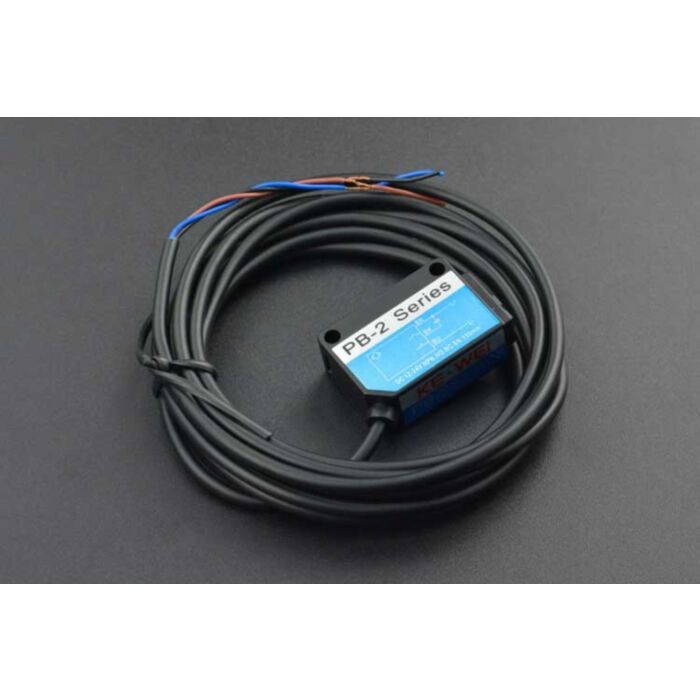

Background Suppression Photoelectric Sensor (15~350mm)

SKU: FIT0770 Brand: DFRobot

This is a background suppression photoelectric switch with 15mm-350mm adjustable detection range (can be adjusted by the knob). Its response time is only 0.5ms...

$52.15 AUD, inc GST

$47.41 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 17 and Feb 19

Quantity Discounts:

6-12 $45.51 (exc GST)
12+ $44.09 (exc GST)

Introduction

This is a background suppression photoelectric switch with 15mm-350mm adjustable detection range (can be adjusted by the knob). Its response time is only 0.5ms, fast and stable. Adopting eco-friendly and durable ABS material, the sensor detection performance is not affected by color and background, and less affected by surface roughness. Moreover, it integrates reverse current protection, over current protection and over-voltage protection, safe and reliable to use.

Dimension

The module can withstand temperatures from -20°C to 65°C and relative humidity of 35%-85%. Therefore, it can meet your needs both indoor and outdoor. This product is suitable for various fields such as security protection, LED lighting, toys, detection, and industrial automation control.

Specification

Distance: 15-350mm
Spot Type: red light
Spot Size: 10mm
Response Time: 0.5ms
Interval distance: minimum 1mm, no more than 5% of the set distance
Black-white Differential: no more than 5% (white: reflective 95%, black: reflective 5%)
Detectable Objects: opaque and translucent materials
Sensitivity Adjustment: knob adjustment
Operation Mode: LIGHT-ON/DARK-ON (button automatic adjustment, long press for 10 seconds to automatically switch)
Indicator: output and power: red LED, stable operation: green LED
Control Output: NPN or PNP: maximum of 100mA (40V), residual voltage: maximum to 1V
Protection Circuit: reverse current protection, over current protection, over-voltage protection
Power supply: 12 to 24VDC ± 10%
Current Consumption: maximum of 20mA
Protection Level: IP-66
Environmental luminosity: incandescent lamp: maximum of 5000 lux, daylight: maximum of 20000 lux
Ambient Temperature: -20 to +65°C, with no freezing
Relative Humidity: 35 to 85%, with no condensation
Outer Cover: ABS material
Weight: 20g

Shipping List

Background Suppression Sensor x1
