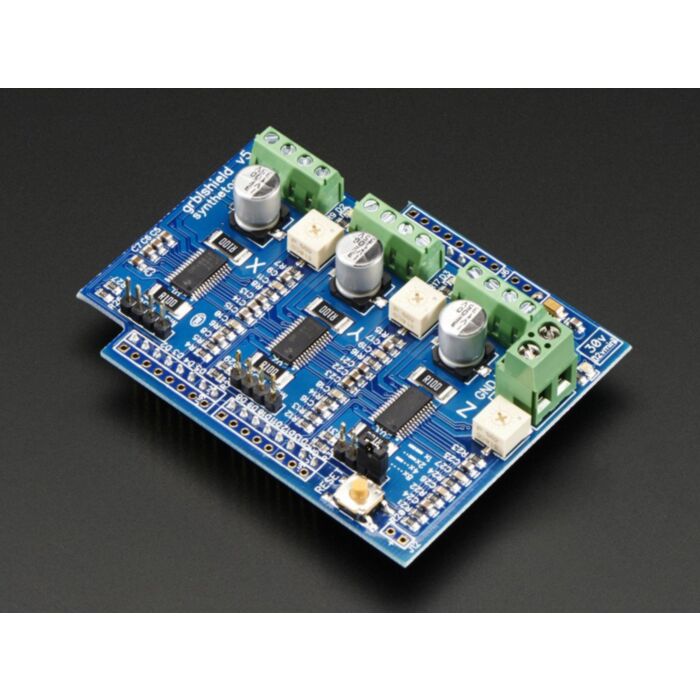

Synthetos gShield (grblShield) V5

Rating:

100% of 100

SKU: ADA1750 Brand: Adafruit

Create your very own Arduino-controlled 3-axis CNC machine with the gShield. The gShield for Arduino (formerly known as grblShield) is a complete hardware solution...

$169.95 AUD, inc GST

$154.50 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 09 and Jun 12

Quantity Discounts:

5+ $148.32 (exc GST)
10+ $143.68 (exc GST)

Create your very own Arduino-controlled 3-axis CNC machine with the gShield. The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for Dank’s CNC motion control system called grbl. The gShield is compatible with the Uno and other 328p versions of the Arduino development platform. Version 5 is now compatible with running TinyG on the Arduino Due. The v5 power jumper simply allows the gShield to be run as a native 3.3v device from the Due, instead of a 5v device.

Features:

2.5 Amps per winding
12-30 Input Voltage
Open Pin Pass Through
8x Microstepping
Screw Down Terminal Voltage Input
Hardware 3x Axis (x,y,z)
3x Robust TI DRV8818 Stepper Drivers

Technical Details

GShield Schematic

Dimensions: 58mm x 78mm / 2.3" x 3.1"
Board Thickness: 2mm / .08"
Weight: 31g

For questions and more information on the GShield, check out the Synthetos Forums!
