SWD 0.05 Pitch Connector - 10 Pin SMT Box Header

SKU: ADA752

$2.50 AUD, inc GST
$2.27 AUD, exc GST
SWD 0.05 Pitch Connector - 10 Pin SMT Box Header
2.4983 AUD

SKU: ADA752

$2.50 AUD, inc GST
$2.27 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

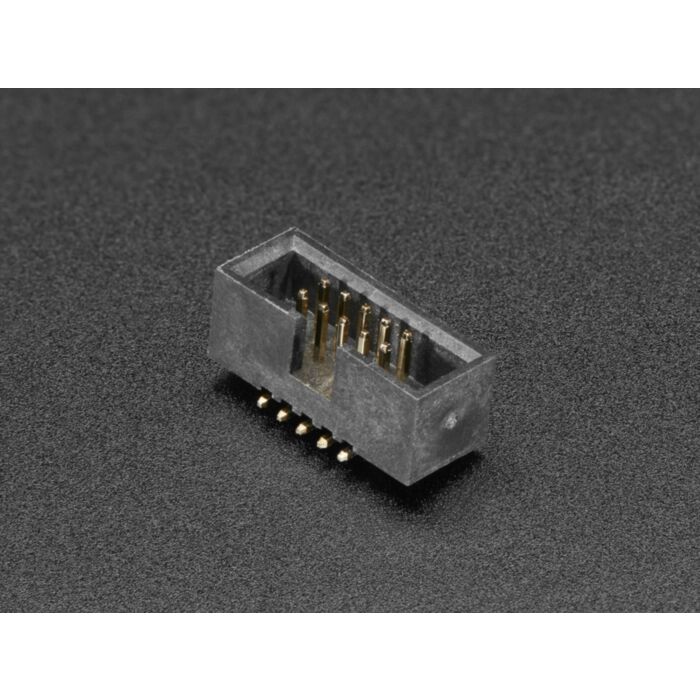

This 1.27mm pitch, 2x5 male SMT Box Header is the same one used on our SWD Cable Breakout Board. The header alone is great if you want to incorporate this piece of hardware with your own software. Adafruit are specifically selling it so you can solder it onto Adafruit's nRF52 Feather to add SWD debug/connect capabilities. You could also straighten out the SMT pins to solder into a thru-hole connector.

This little guy will snap right into any 10-pin 2x5 socket-socket 1.27mm IDC (SWD) cable. In conjunction with these cables, they are handy when programming or debugging tiny boards. Adafruit see these connectors often on ARM Cortex dev kits, and have a few handy in Adafruit's ARM-dev box.

One header per order.

Technical Details

Product Dimensions: 12.6mm x 5.0mm x 4.9mm / 0.5" x 0.2" x 0.2"

Product Weight: 0.5g / 0.0oz
