SparkFun Quadband GNSS RTK Breakout - LG290P (Qwiic)

SKU: GPS-26620 Brand: Sparkfun

This SparkFun Qwiic Quadband GNSS RTK Breakout offers a powerful upgrade with the Quectel LG290P GNSS module, providing exceptional positioning accuracy!...

Special Price $232.05 AUD, inc GST

Regular Price $284.55 AUD, inc GST

$210.95 AUD, exc GST

Special pricing ends 24 March 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Dec 30 and Jan 02

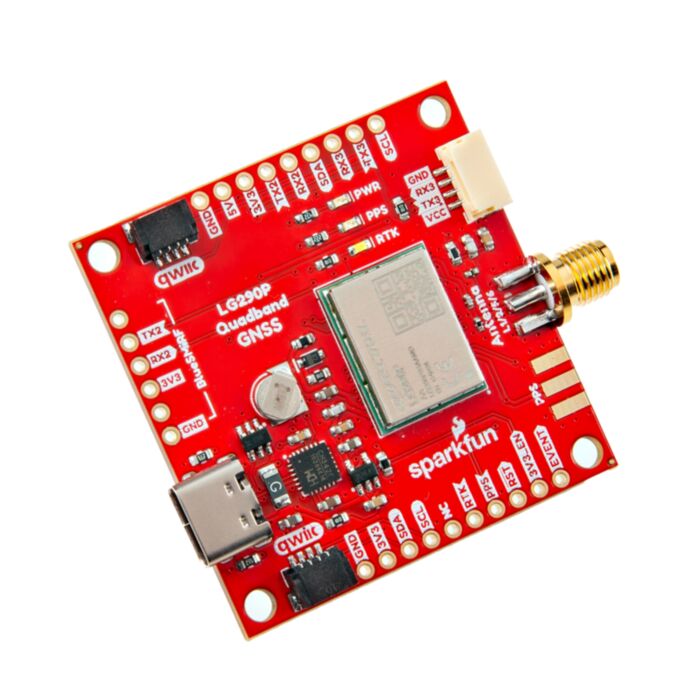

The SparkFun Quadband GNSS RTK Breakout - LG290P (Qwiic) offers a powerful upgrade with the Quectel LG290P GNSS module, providing exceptional positioning accuracy. The board's dimensions, pin layout, and connectors are exactly the same as the popular SparkFun GPS-RTK-SMA Breakout - ZED-F9P (Qwiic), featuring the same compact design and convenient Qwiic connector. Connect with ease using a variety of interfaces, including UART, SPI*, and I2C*.

The LG290P module is a quad-band, multi-constellation, high-precision, RTK GNSS receiver. The module is capable of simultaneously receiving signals from the L1, L2, L5, and L6/E6 frequency bands of the GPS, GLONASS, Galileo, BDS, QZSS, and NavIC GNSS constellations. In addition, the module supports SBAS augmentation systems (WASS, EGNOS, BDSBAS, MSAS, GAGAN, and SDCM), PPP services* (BDS PPP-B2b, QZSS CLAS, MADOCA-PPP, and Galileo HAS), RTCM, and RTK corrections for precision navigation with a fast convergence time and reliable performance.

The built-in NIC anti-jamming unit provides professional-grade interference signal detection and elimination algorithms, effectively mitigating multiple narrow-band interference sources and significantly improving signal reception performance in complex electromagnetic environments. Additionally, the embedded algorithms ensure reliable positioning in complex scenarios such as urban environments and deep tree cover.

With its high-precision and low power consumption performance advantages, this board is ideal for high-precision navigation applications, such as intelligent robots, UAVs, precision agriculture, mining, surveying, and autonomous navigation.

*: Feature is still under development

Note: Currently, only the UART interface is supported by the module. Three UART ports are broken out to the USB-C connector (via CH342 USB-serial converter), 4-pin locking JST connector, and BlueSMiRF 6-pin header. Additionally, the corrections for some of the PPP services may not be implemented yet.

Get Started with the SparkFun Quadband GNSS RTK Breakout - LG290P (Qwiic)

Features

SparkFun Quadband GNSS RTK Breakout - LG290P Features

Quectel LG290P quad-band, GNSS module
- Concurrent signal reception: 5 + QZSS
  - L1, L2, L5, E6 frequency bands
- GNSS Constellations:
  - GPS (USA)
  - GLONASS (Russia)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WASS (USA)
  - SDCM (Russia)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
- Built-in NIC anti-jamming unit
Breakout board:
- Dimensions: 1.70" x 1.70" (43.2mm x 43.2mm)
- Four mounting holes:
  - 4-40 screw compatible
Connections:
- 24 PTH Pins
- 4-pin JST Qwiic connector* (x2)
- UART interfaces (x3)
  - USB-C connector
  - 6 PTH pins (BlueSMiRF/Serial-to-UART)
  - 4-pin locking JST connector
LEDs:
- PWR - Red 3.3V power indicator
- PPS - Yellow Pulse-Per-Second indicator
- RTK - White RTK correction indicator
Backup battery

LG290P General Features

High-precision GNSS module
Electrical Characteristics:
- Supply Voltage: 3.15–3.45V
- Current Consumption:
  - Normal Operation:
    - 91mA (300.3mW) (Acquisition)
    - 91mA (300.3mW) (Tracking)
  - Power Saving Mode:
    - 12µA (39.6mW) (Backup Mode)
GNSS Frequency bands:
- GPS: L1 C/A, L1C*, L5, L2C
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6
- BDS: B1I, B1C, B2a, B2b, B2I, B3I
- QZSS: L1 C/A, L1C*, L5, L2C
- NavIC: L5
- SBAS: L1 C/A
- L-band PPP*:
  - PPP: B2b
  - QZSS: L6
  - Galileo HAS: E6
Tracking Channels: 1040
Horizontal Position Accuracy:
- Autonomous: 0.7m
- RTK: 0.8cm + 1ppm
Vertical Accuracy:
- Autonomous: 2.5m
- RTK: 1.5cm + 1ppm
Velocity Accuracy Without Aid: 0.03m/s
Accuracy of 1PPS Signal: 5ns (RMS)
RTK Convergence Time: 5s
Time to First Fix (without AGNSS):
- Cold Start: 28s
- Warm Start: 28s
- Hot Start: 1.7s
Sensitivity:
- Acquisition: -146dBm
- Tracking: -160dBm
- Reacquisition: -155dBm
Dynamic Performance:
- Maximum Altitude: 10000m
- Maximum Velocity: 490m/s
- Maximum Acceleration: 4g
Update Rate:
- Default: 10Hz
- Max: 20Hz
Antenna Interface:
- External active antenna
- Power Supply: External or Internal
Interfaces
- UART (x3)
  - Baud Rate: 9600–3000000bps
  - Default: 460800bps
  - Protocol: NMEA 0183/RTCM 3.x
- SPI* (x1)
- I2C* (x1)
Operating temperature: -40°C to +85°C
Footprint: 12.2mm × 16mm × 2.6mm
Weight: ~0.9g

*: Feature is still under development
