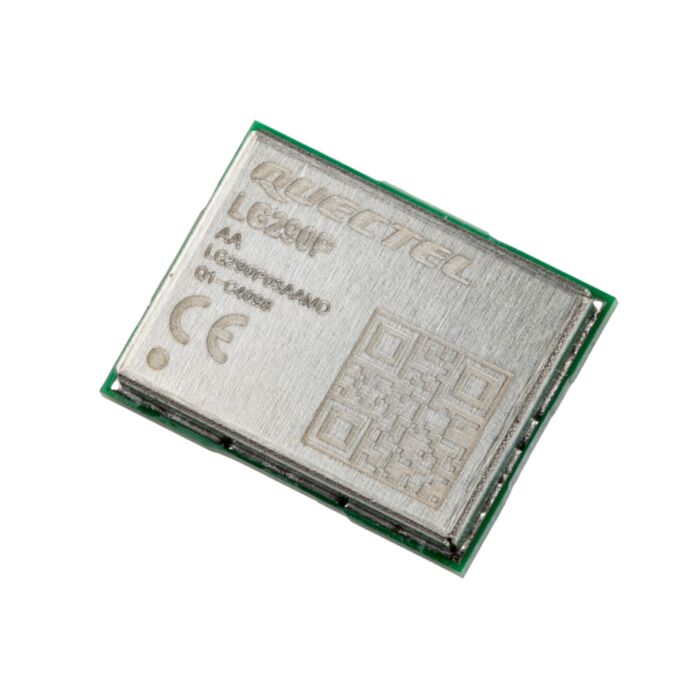

Quectel LG290P GPS GNSS Module Quadband (Cut Tape)

SKU: GPS-27316 Brand: Sparkfun

Quectel LG290P is a quad-band, multi-constellation high-precision GNSS module...

Special Price $238.23 AUD, inc GST

Regular Price $291.99 AUD, inc GST

$216.57 AUD, exc GST

Special pricing ends 14 July 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Apr 28 and May 01

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

Quectel LG290P is a quad-band, multi-constellation high-precision GNSS module, which supports simultaneous reception of GPS, GLONASS, Galileo, BDS, QZSS and NavIC constellations, as well as SBAS augmentation systems (WASS, EGNOS, BDSBAS, MSAS, GAGAN and SDCM). The module supports Quad-band RTK with fast convergence time and reliable performance.

An integrated professional-grade interference signal detection and elimination algorithms effectively mitigates against multiple narrow-band interference sources which significantly improves signal reception performance, particularly in complex electromagnetic environments. The LG290P module supports multi-mode and Quadband RTK algorithm solutions, ensuring fast and reliable high-precision RTK positioning in complex scenarios such as urban environments and deep tree cover.

LG290P supports protection-level and other integrity detection information, aiding control decisions in automatic navigation application scenarios. With on-chip storage ECC verification and Secure Boot safe loading mode, the module protects the operating firmware safety. The LG290P accommodates users diverse needs with a choice of interfaces including UART, SPI and I2C.

Features

Dimensions: 12.2 x 16 x 2.6mm
Weight: Approx. 0.9g
Operating Temperature: -40°C - +85°C
Supported Bands:
- GPS: L1 C/A, L5, L2C
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6
- BDS: B1I, B1C, B2a, B2b, B2I, B3I
- QZSS: L1 C/A, L5, L2C
- NavIC: L5
- SBAS: L1
Default Constellations: GPS + GLONASS + Galileo + BDS + QZSS + NavIC
Number of Tracking Channels: 1040
Number of Concurrent GNSS: 5 + QZSS
Horizontal Position Accuracy:
- Autonomous: 0.7m
- RTK: 0.8cm + 1ppm
Vertical Accuracy:
- Autonomous: 2.5m
- RTK: 1.5cm + 1ppm
Velocity Accuracy (Without Aid): 0.03m/s
Accuracy of 1PPS Sognal (RMS): 5ns
RTK Convergence Time: 5s
TTFF (without AGNSS):
- Cold Start: 28s
- Warm Start: 28s
- Hot Start: 1.7s
Sensitivity (@ Default Constellations):
- Acquisition: -146 dBm
- Tracking: -160 dBm
- Reacquisition: -155dBm
Dynamic Performance:
- Maximum Altitude: 10000m
- Maximum Velocity: 490m/s
- Maximum Acceleration: 4g
Update Rate:
- Default: 10Hz
- Max. 20Hz
Supply Voltage Range: 3.15 - 3.45V, Typ. 3.3V
I/O Voltage: Following VCC

Documents

Datasheet
