SparkFun Pro RF - LoRa, 915MHz (SAMD21)

SKU: WRL-15836 Brand: Sparkfun

The SparkFun Pro RF is a LoRa®-enabled wireless board that marries a SAMD21 and a long-range RFM95W to make a compact and easy-to-use IoT Arduino board. With its...

$64.90 AUD, inc GST

$59.00 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 28 and Jul 30

Quantity Discounts:

5+ $57.23 (exc GST)
25+ $56.05 (exc GST)
100+ $53.69 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

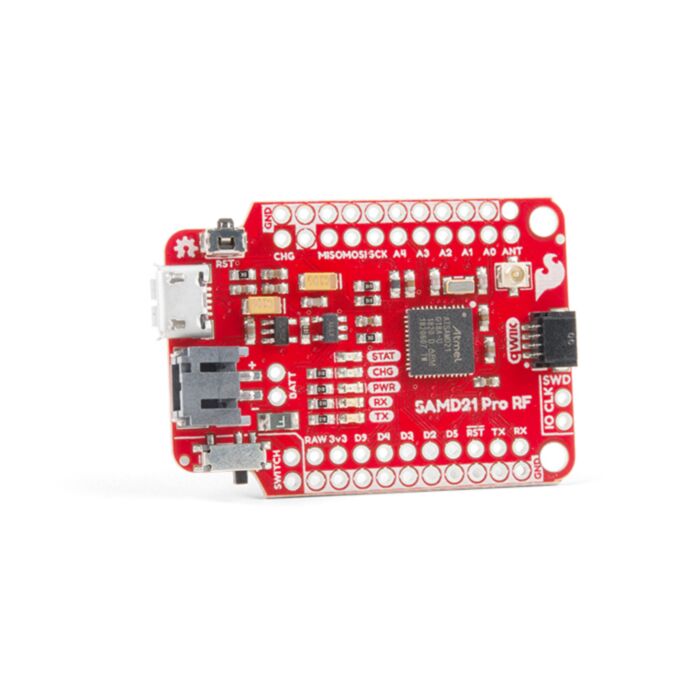

The SparkFun Pro RF is a LoRa®-enabled wireless board that marries a SAMD21 and a long-range RFM95W to make a compact and easy-to-use IoT Arduino board. With its fast MCU and excellent point to point data transmission in the 915MHz ISM band with LoRa Capabilities, the Pro RF is a great choice for anyone interested or experienced in utilizing long range data communication.

Every pin on the SparkFun Pro RF is accompanied with a ground connection making the buttons and LEDs easy to connect. In case you're building something to be embedded into clothing or other physically harsh environment the antenna includes a stress relief hole to make sure your wire antenna survives. A short (3 inch) wire antenna is sufficient for "short" distances (up to 1 mile line-of-sight), but we've also included a u.FL antennae connector for potentially longer distances.

The Pro RF also includes a power switch and 2-pin JST connector for powering from a lithium battery. With a Micro-B USB and the power switch in the off position, the Pro RF will charge the attached battery! The board programs over a reinforced Micro-B connector with a slim reset button that fits nicely on the side of the board. We've even added our popular Qwiic connector to the edge of the board making it incredibly easy to add sensors and actuators without the need for solder or a soldering iron!

Thanks to the Arduino LoRa library, the RFM95W radio is an easy to use packet radio. But it doesn't stop there because closing a few jumpers on the underside of the SAMD21 Pro RF initiates LoRaWAN mode on the radio module making it a node in a distributed sensor network.

Get Started With the Sparkfun SAMD21 Pro RF Guide

Features

SAMD21G18A
- Cortex M0
- 256KB Flash Memory
- 32MHz External Oscillator
- 4 Digital and 5 Analog IO Pins with exclusive GND pins
Hope RFM95W LoRa modem
- Point to Point Radio capabilities
- LoRa Enabled
- Frequency range: 915 MHz
- Spread factor: 6-12
- Range up to 1 mile line of sight
- U.FL Antenna
LiPo Battery Charger
- 500mA Charge Rate
Qwiic Enabled
Power LED disconnect jumper for low power applications.
PTH pins for software debug (SWD)

Revision Changes: On this revision of the SAMD21 Pro RF, Sparkfun have made a few changes to improve the board, listed below. If users are unsure about which version they purchased, please refer to the product pictures.

Fixed the VDDCORE pin connection issue
Broken out an LED jumper for low power applications
Added PTH pins for software debug (SWD)

Documents

Schematic
Eagle Files
Hookup Guide
The Things Network
Graphical Datasheet
Datasheets
- RFM95W
- MCP73831
- SAMD21G
GitHub Hardware Repo
