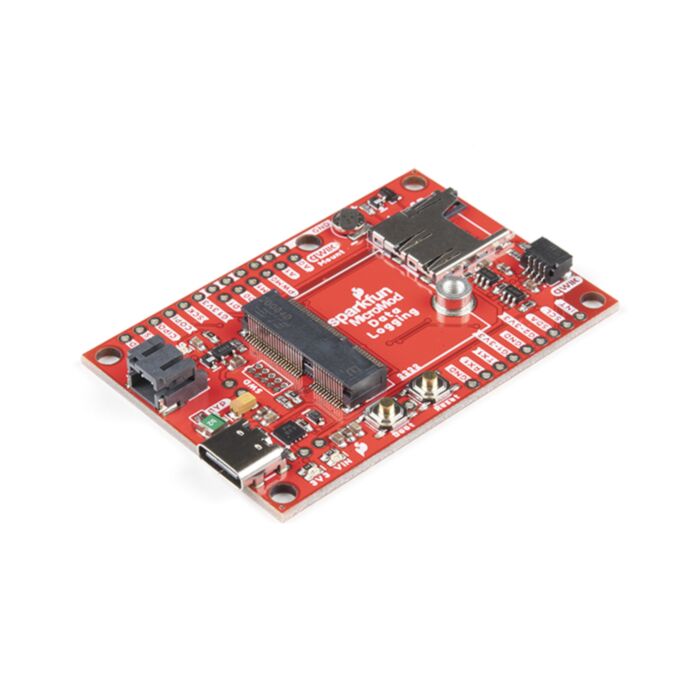

SparkFun MicroMod Data Logging Carrier Board

SKU: DEV-16829 Brand: Sparkfun

The SparkFun MicroMod Data Logging Board offers a highly customizable, low-power data logging platform using the MicroMod system allowing you to choose your own...

$36.75 AUD, inc GST

$33.41 AUD, exc GST

Available with a lead time
Expect dispatch between May 15 and May 20

Quantity Discounts:

10-25 $32.41 (exc GST)
25+ $31.74 (exc GST)

The SparkFun MicroMod Data Logging Board offers a highly customizable, low-power data logging platform using the MicroMod system allowing you to choose your own Processor to pair with the Carrier Board. The Data Logging Carrier Board breaks out connections for I²C via a Qwiic connector or standard 0.1"-spaced PTH pins along with SPI and serial UART connections for logging data from peripheral devices using those communication protocols.

The Data Logging Carrier Board allows you to control power to both the Qwiic connector on the board and a dedicated 3.3V power rail for non-Qwiic peripherals so you can pick and choose when to power the peripherals you are monitoring the data from. It also features a charging circuit for single-cell Lithium-ion batteries along with a separate RTC battery-backup circuit to maintain power to a real-time clock circuit on your Processor Board.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get Started with the MicroMod Data Logging Carrier Board Guide

Features

M.2 MicroMod Connector
microSD socket
USB-C Connector
3.3V 1A Voltage Regulator
Qwiic Connector
Boot/Reset Buttons
RTC Backup Battery & Charge Circuit
Independent 3.3V regulators for Qwiic bus and peripheral add-ons
- Controlled by digital pins on Processor Board to enable low power sleep modes
Phillips #0 M2.5x3mm screw included

Documents

MicroMod Data Logging Carrier Documentation:

MicroMod Documentation:
