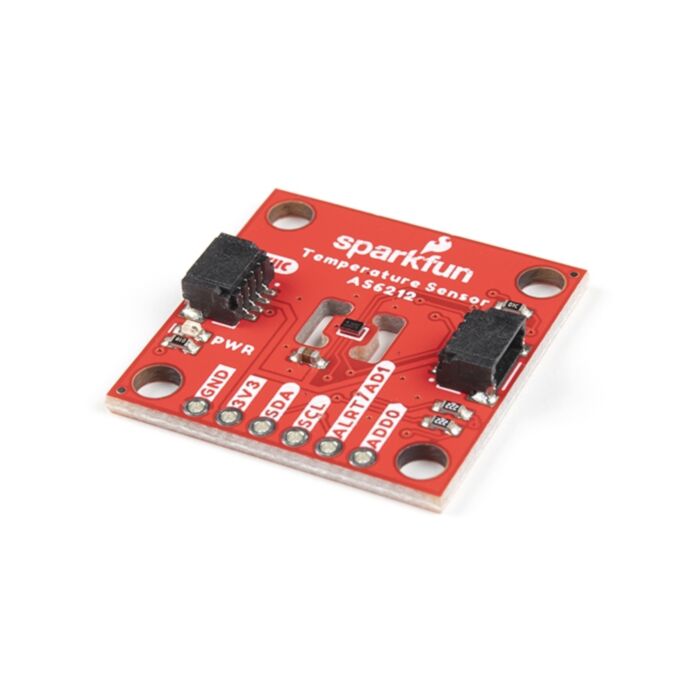

SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic)

SKU: SEN-18521 Brand: Sparkfun

The AS6212 digital temperature sensor from AMS provides high-accuracy temperature data combined with excellent power consumption on a small Qwiic board...

$19.65 AUD, inc GST

$17.86 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 10 and Nov 13

Quantity Discounts:

5+ $17.33 (exc GST)
25+ $16.97 (exc GST)
100+ $16.25 (exc GST)

This SparkFun Qwiic Digital Temperature Sensor Breakout provides a combination of high temperature accuracy with excellent low power consumption using the AS6212 digital temperature sensor from ams AG. The sensor measures temperature data up to ±0.2°C; accuracy over a wide range (-40°C; to 125°C;) and consumes an average of 6µA in normal operation (0.1µA in standby). The AS6212 communicates via I²C and has eight available I²C addresses selected by a pair of solder jumpers on the board. The breakout routes the I²C interface to a pair of Qwiic connectors to work with our plug-and-play Qwiic Ecosystem but also routes the bus and other pins to a standard 0.1"-spaced PTH header for users who prefer a soldered connection.

The AS6212 features an alert output to trigger when recorded temperature data crosses user-designated thresholds. The low and high values make it perfect to monitor systems that must remain in a specific temperature range. Along with the alert pin, the AS6212's sleep mode works with a single-shot temperature measurement to wake the device, take a single reading and then return to sleep mode for extreme low-power/battery-powered temperature measurement projects.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the AS6212 Digital Temperature Sensor Guide

Communicates via I²C (Qwiic enabled)
Eight selectable I²C addresses (0x48 Default)
Operating Temperature Range: -10°C to 125°C
High Temperature Accuracy:
- ±0.2°C from -10°C to 65°C
- ±0.3°C from -40°C to -10°C and 65°C to 85°C
- ±0.5°C from 85°C to 125°C
Operating Voltage Range: 1.7V - 3.6V
Low Power Consumption
- 6µA typical
- 0.1µA standby
