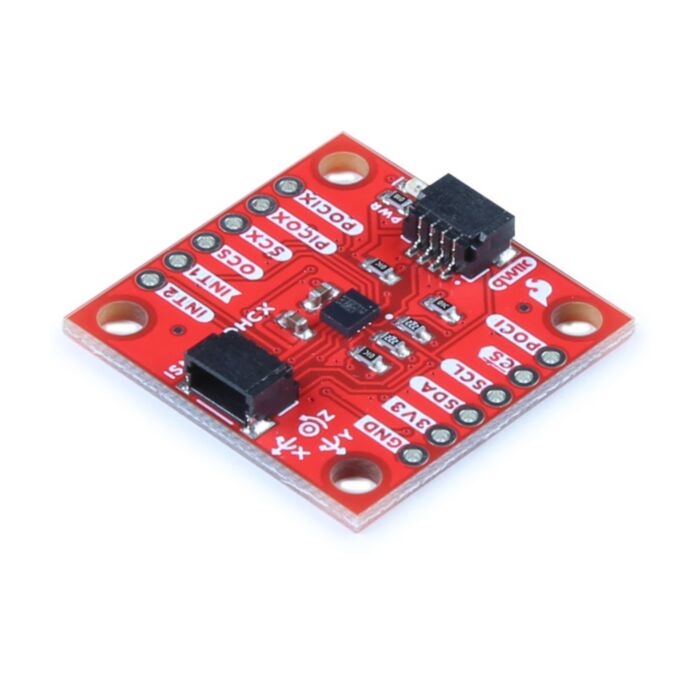

SparkFun 6DoF IMU Breakout - ISM330DHCX (Qwiic)

SKU: SEN-19764 Brand: Sparkfun

The SparkFun Qwiic ISM330DHCX 6DoF IMU is a standard-sized, 1"x1" breakout featuring a high-performance 3D digital accelerometer and 3D digital gyroscope...

$52.03 AUD, inc GST

$47.30 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 14

Quantity Discounts:

6+ $46.59 (exc GST)

The SparkFun Qwiic ISM330DHCX Six Degrees of Freedom IMU is a standard-sized, 1in. by 1in. breakout featuring STMicroelectronics' ISM330DHCX; a high-performance 3D digital accelerometer and 3D digital gyroscope tailored for Industry 4.0. Applications such as platform, optical image, lens stabilization, robotics and industrial automation, navigations systems, and vibration monitoring and compensation are made easy with this small board. The Qwiic 6DoF IMU communicates over I²C by default utilizing our handy Qwiic Connect System so no soldering is required to connect it to the rest of your boards. However, Sparkfun still routed the I²C signals out to a set of 0.1”-spaced pins for users who prefer a soldered connection.

This 6DoF IMU Breakout has a full-scale acceleration range of ±2/±4/±8/±16g and a wide angular rate range of ±125/±250/±500/±1000/±2000/±4000 dps that enable its usage in a broad range of applications. An unmatched set of embedded features (Machine Learning Core, programmable FSM, FIFO, sensor hub, event decoding and interrupts) are enablers for implementing smart and complex sensor nodes which deliver high performance at very low power.

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun Qwiic ISM330DHCX 6DoF IMU Guide

Features

Machine Learning Core
Acceleration range of ±2/±4/±8/±16g
Smart embedded functions and interrupts: tilt detection, free-fall, wakeup, 6D/4D orientation, click and double-click
Embedded pedometer, step detector and counter for healthcare applications
Analog supply voltage: 1.71V to 3.6V
Embedded temperature sensor
Embedded self-test both for gyroscope and accelerometer
High shock survivability
ECOPACK, RoHS and “Green” compliant
2x Qwiic Connectors
