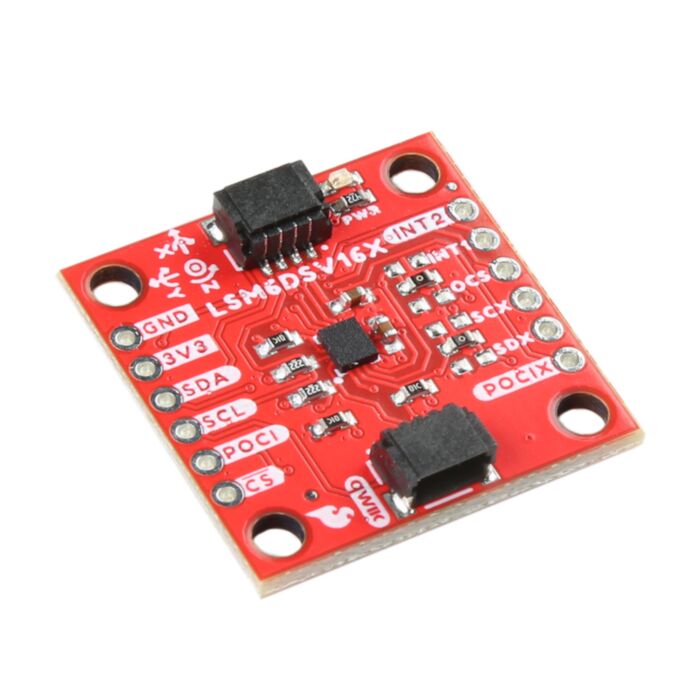

SparkFun 6DoF IMU Breakout - LSM6DSV16X (Qwiic)

SKU: SEN-21325 Brand: Sparkfun

The SparkFun LSM6DSV16X 6DoF IMU is a Qwiic-enabled, AI-featured, breakout based on the LSM6DSV16X from STMicroelectronics...

$40.90 AUD, inc GST

$37.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5+ $36.06 (exc GST)
25+ $35.33 (exc GST)
100+ $33.84 (exc GST)

Looking for an extremely accurate way to detect motion utilizing AI? We've got you covered with the Qwiic-enabled, SparkFun LSM6DSV16X 6DoF IMU Breakout. The LSM6DSV16X Breakout is a high-performance, low-power 6-axis IMU, featuring a 3-axis digital accelerometer, and a 3-axis digital gyroscope, with a triple core for processing acceleration and angular rate data on three separate channels (user interface, OIS, and EIS) with dedicated configuration, processing, and filtering. All this functionality comes in our standard 1in. x 1in. Qwiic form factor and will seamlessly integrate into your Qwiic-based projects. However, Sparkfun still routed the I²C signals out to a set of 0.1in.-spaced pins for users who prefer a soldered connection.

The triple core of the LSM6DSV16X enables processes in edge computing, leveraging embedded advanced dedicated features such as a finite state machine (FSM) for configurable motion tracking and a machine learning core (MLC) for contextual awareness with exportable AI features for IoT applications.

Additionally, Qvar (electric charge variation detection) is embedded in the LSM6DSV16X for user interface functions like tap, double tap, triple tap, long press, or L/R – R/L swipe.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun LSM6DSV16X 6DoF IMU Breakout Guide

Features

I2C addresses: 0x6B (Default), 0x6A
Triple core for UI, EIS, and OIS data processing
"Always-on" experience with low power consumption for both accelerometer and gyroscope
Smart FIFO up to 4.5KB
Android compliant
±2/±4/±8/±16 g full scale
±125/±250/±500/±1000/±2000/±4000 dps full scale
SPI / I²C & MIPI I3C® v1.1 serial interface with main processor data synchronization
Auxiliary SPI for OIS data output for gyroscope and accelerometer
Advanced pedometer, step detector, and step counter
Significant motion detection, tilt detection
Standard interrupts: free-fall, wake-up, 6D/4D orientation, click and double click
Programmable finite state machine for accelerometer, gyroscope, and external sensor data processing with high rate @ 960 Hz
Machine learning core with exportable features and filters for AI applications
Embedded Qvar (electrostatic sensor) for user interface functions (tap, double tap, triple tap, long press, L/R – R/L swipe)
Embedded analog hub for ADC and processing analog input data
Embedded sensor fusion low-power algorithm
Embedded temperature sensor
Analog supply voltage: 1.71V to 3.6V
Independent IO supply (extended range: 1.08V to 3.6V)
Power consumption: 0.65mA in combo high-performance mode
2x Qwiic Connectors
