SMD Resistor - 0805 ± 5%(500pcs)

Rating:

100% of 100

SKU: FIT0190 Brand: DFRobot

Surface mount device , SMD, resistors are the most widely used electronic component. They're designed to have small metal tabs that could be directly soldered to the surface of the PCB.

$8.30 AUD, inc GST

$7.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $7.25 (exc GST)
25+ $7.02 (exc GST)

Surface mount device , SMD, resistors are the most widely used electronic component. They're designed to have small metal tabs that could be directly soldered to the surface of the PCB.It makes your design much smaller and compact than through-hole components. Because it needs fewer holes to be drilled.

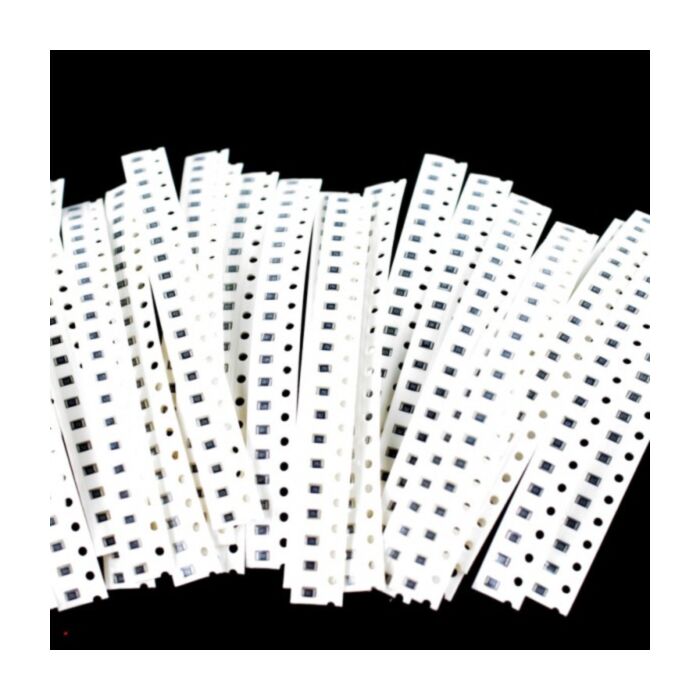

This package includes 25 strip of 20 SMD resistors - 0805. It covers commonly used smd resistors.But due to the small sizes and lead spacings of many SMDs, soldering this smd resistors requires skilled operators and more expensive tools for your component-level repair or manual prototype assembly.

Note: These strips are cut by hand, please forgive us if some strips come with 1 or 2 pieces less. On the plus side, you could get 1 or 2 pieces more :D

Applications

suitable for compact circuit boards

Specification

620R-12K 5% 0805 resistors
1/10th Watt
Size of resistors: 2.0x1.3mm (0.08x0.05 Inches)

Documents

Recommended Solder Pad Dimensions

Parts List

620ohm x20
680ohm x20
750ohm x20
820ohm x20
1K x20
1.2K x20
1.5K x20
2K x20
2.2K x20
2.4K x20
2.7K x20
3K x20
3.3K x20
3.6K x20
3.9K x20
4.3K x20
4.7K x20
5.1K x20
5.6K x20
6.8K x20
7.5K x20
8.2K x20
9.1K x20
10K x20
12K x20
