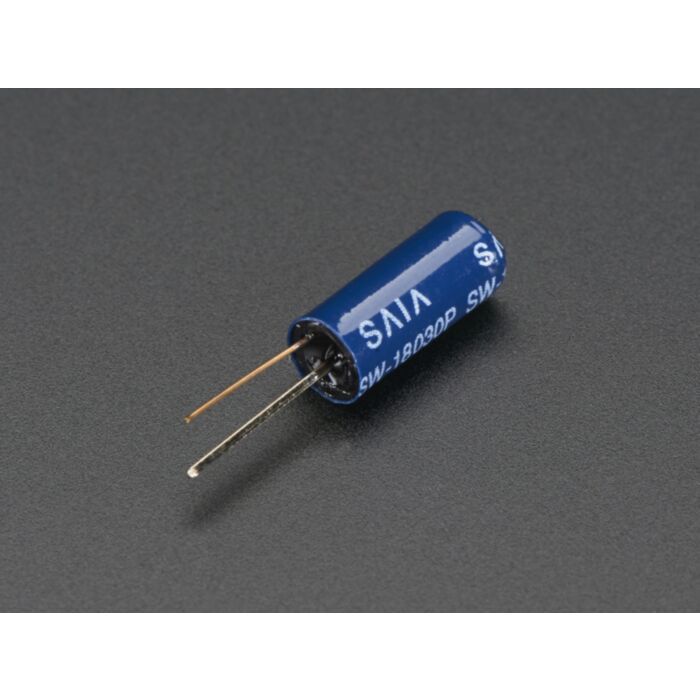

Slow Vibration Sensor Switch (Hard to trigger)

Rating:

100% of 100

SKU: ADA1767 Brand: Adafruit

The "poor man's" accelerometer/motion sensor! These spring-vibration switches are low sensitivity non-directional vibration induced trigger switches. Inside is a...

$1.85 AUD, inc GST

$1.68 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 04

Quantity Discounts:

10-25 $1.62 (exc GST)
25+ $1.56 (exc GST)

The "poor man's" accelerometer/motion sensor! These spring-vibration switches are low sensitivity non-directional vibration induced trigger switches. Inside is a stiff spring coiled around a long metal pin. When the switch is moved, the spring touches the center pole to make contact. So, when there's motion, the two pins will act like a closed switch. When everything is still, the switch is open. Great for basic projects and wearables!

They also have a version with a less stiff spring which makes it a little easier to trigger, and a version with a very soft spring which makes it much easier to trigger!

Technical Details

Electrical characteristics:

Maximum Voltage: 12V
Contact Resistance: <10 ohm
Contact Time: 2 ms
Maximum Current: 20mA
Insulation Resistance: >10M ohm
Temperature Range: -40 to 80ºC
Operating lifespan: 100,000 cycles

Diameter: 5mm/0.2"
Height (w/ pins): 21mm/0.8"
Height (w/o pins): 11mm/0.4"
Weight: 0.30g
