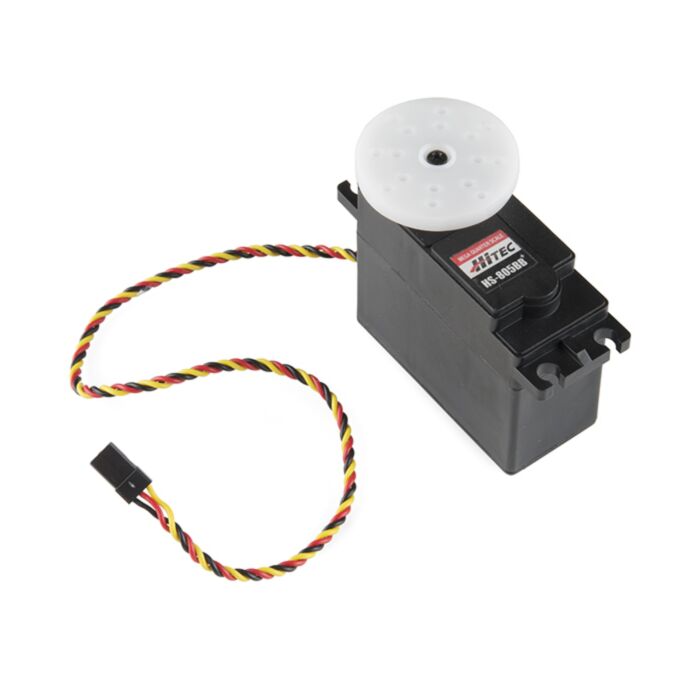

Servo - Hitec HS-805BB (Giant Scale)

SKU: ROB-11881 Brand: Sparkfun

This beast is the Hitec HS-805BB servo. Able to take in 6 volts and deliver an impressive 343 oz-in. of maximum torque at 0.14 sec/60°, this is a heavy duty servo and is not to be taken lightly!

$99.70 AUD, inc GST

$90.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

6-12 $87.92 (exc GST)
12+ $86.11 (exc GST)

This beast is the Hitec HS-805BB servo. Able to take in 6 volts and deliver an impressive 343 oz-in. of maximum torque at 0.14 sec/60°, this is a heavy duty servo and is not to be taken lightly!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-805BB servo comes standard with a 3-pin power and control cable, Y-harness, and all hardware listed below.

Note: This servo can draw around 800mA, so keep that in mind when planning a power supply.

Features:

Voltage: 4.8-6.0 Volts
Torque: 274/343 oz-in. (4.8/6.0V)
Speed: 0.19/0.14 sec/60° (4.8/6.0V)
Direction: Clockwise/ Pulse Traveling 1500-1900usec
Rotation: 180°
Dual Ball Bearing
Heavy Duty Nylon Gears
3-Pole Ferrite Motor
D1 Heavy Duty Spline

Includes:

1x HS-805BB Servo
1x Y-Harness
1x Circle Mega Horn
1x Four Point Mega Horn
1x Single Arm Mega Horn
4x Rubber Grommets
4x 2x15mm Phillips Screw
4x Brass Eyelets

Dimensions:

66 x 30 x 57.6mm
Wire Length: 300mm
Weight: 152g

Documents:
