Servo - Generic High Torque Full Rotation (Standard Size)

SKU: ROB-09347

$22.63 AUD, inc GST
$20.57 AUD, exc GST

More Views

Servo - Generic High Torque Full Rotation (Standard Size)
22.63 AUD

SKU: ROB-09347

$22.63 AUD, inc GST
$20.57 AUD, exc GST
1 reviews 0 5 5

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 19 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 20th of Dec with Express Post within Australia.

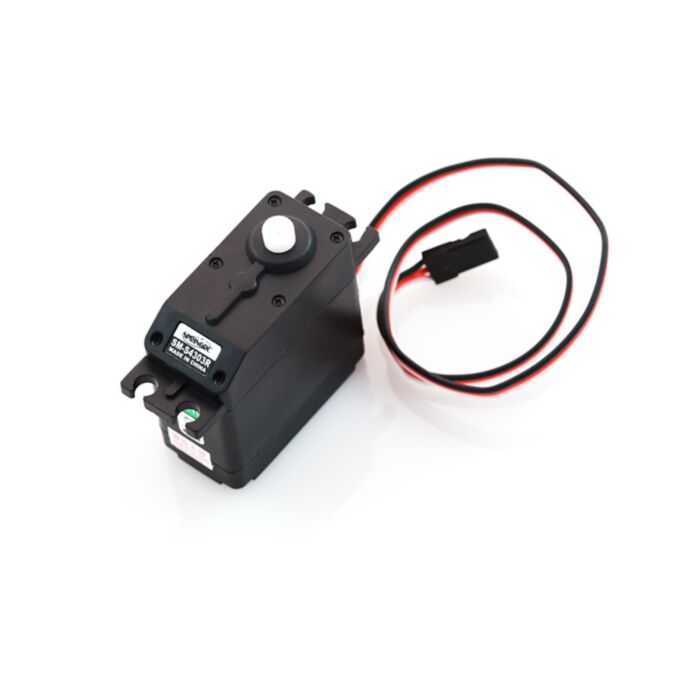

Here, for all your mechatronic needs, is a simple, high quality continuous full-rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

A standard 3-pin power and control cable is attached and all hardware listed below is included.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.8/66.7 oz-in. (4.8/6.0V)
  • Speed: 60/70 r/min (4.8/6.0V)
  • Rotation: 360°
  • Dual Ball Bearing
  • 4 Plastic Gears + 1 Metal Gear
  • 25T Spline
  • Rest point adjustment

Includes:

  • 1x SM-S4303R High Torque Full Rotation Servo
  • 1x Mounting Screw
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x Double Arm Horn (1x Large, 1x Medium)
  • 2x Circle Horn (1x Large, 1x Medium)
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions:

  • 42 x 39.5 x 22.5mm
  • Wire length: 300mm
  • Weight: 44g

Documents:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Ken verified purchaser
    Rating
    100

    Have not used the servo yet, however it looks to be quite sturdy and well made. (Posted on 9/02/2016)
