Servo - Generic Full Rotation (Micro Size)

SKU: ROB-10189

$20.27 AUD, inc GST
$18.43 AUD, exc GST

More Views

Servo - Generic Full Rotation (Micro Size)
20.27 AUD

SKU: ROB-10189

$20.27 AUD, inc GST
$18.43 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 616 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Thu, 31st of May with Express Post within Australia.
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Here, for all your mechatronic needs, is a simple, high quality continuous full-rotation servo motor. This servo is able to take in 6 volts and deliver 30.6 oz-in. of maximum torque at 0.14 sec/60°

A standard 3-pin power and control cable is attached and all hardware listed below is included.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 27.8/30.6 oz-in. (4.8/6.0V)
  • Speed: 0.16/0.14 sec/60° (4.8/6.0V)
  • Rotation: 360°
  • Dual Ball Bearing
  • Plastic Gears

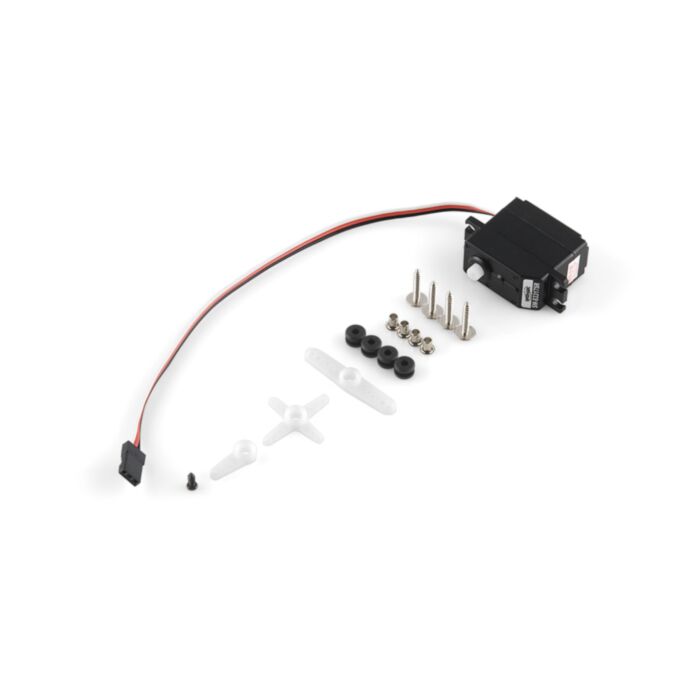

Includes:

  • 1x SM-S3317S Full Rotation Servo
  • 1x Single Arm Horn
  • 1x Double Arm Horn
  • 1x Four Point Horn
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions:

  • 31.3 x 16.3 x 28.5mm
  • Wire Length: 160mm
  • Weight: 18g
