Serial Pi Zero

Rating:
100% of 100
SKU: CE07499 Brand: AB Electronics
The Serial Pi Plus is a communication board supporting the RS232 serial protocol.
$19.43 AUD, inc GST
$17.66 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10+ $17.40 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

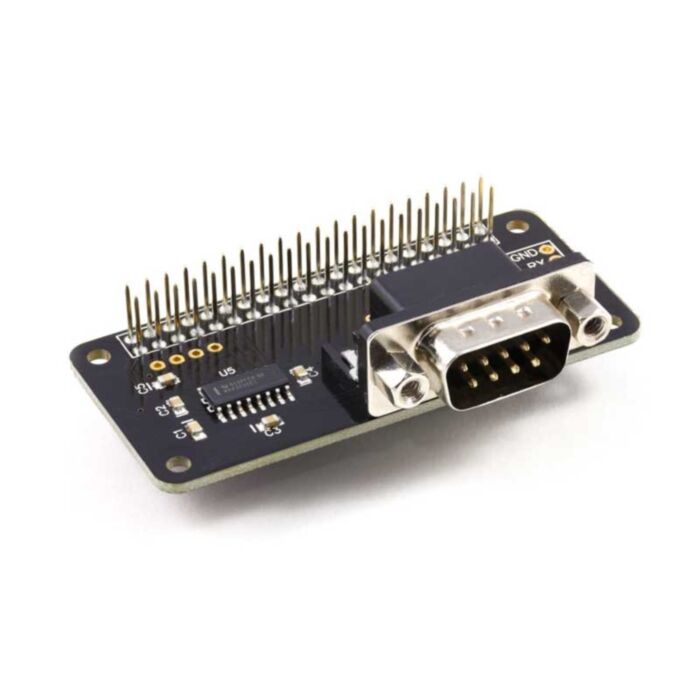

The Serial Pi Zero is a communication board supporting the RS232 serial protocol.

The RS232 port is connected to the UART port on the Raspberry Pi using a MAX3232 interface. The MAX3232 IC converts the 3.3V UART port to RS232 voltages allowing communication with RS232 compatible devices over a DB9 serial cable or with the use of a null-modem cable the board allows terminal access with linux on the Raspberry Pi using a terminal application. The RS232 port can be accessed through the DB9 port or the solder points on the PCB.

An array of 2.54mm pitch holes with 3.3V and 5V connections are also provided on the PCB allowing you to build additional circuits on the board.

Please note that you can only use one Serial Pi board on a Raspberry Pi. if stacking with other boards we recommend putting the Serial pi at the top of the stack due to the height of the DB9 connector.

*You need to use the Raspbian Jessie release or later and disable the built in Bluetooth to use the Serial Pi Zero on the Raspberry Pi 3 or Raspberry Pi Zero W, see our KB page for the config changes needed.

Features

  • RS232 Master Port.
  • Control the Raspberry Pi over RS232 or connect to external serial accessories.
  • Stackable with other Raspberry Pi accessory boards.

Specifications

  • Supply Voltage: 3.3V to 5.5V
  • Logic Voltage at UART Port: 3.3V
  • Maximum Data Rate: 250 kbits/s
  • RS232 Input voltage range: -25V to +25V
  • RS232 Output voltage range: -13.2V to +13.2V

Assembly

The Serial Pi Zero is supplied with the 40 pin GPIO connector and the DB9 connector unsoldered.

Before using the Serial Pi Zero you will need to solder both connectors onto the PCB. We suggest soldering the 40 pin GPIO connector first and then the DB9 connector.

To make assembly easier we have designed a PCB header assembly jig which you can download and print.

Watch the assembly video for the Serial Pi Plus which uses the same assembly steps as the Serial Pi Zero.
