Sensor:bit IO extension board for micro:bit

Rating:
100% of 100
SKU: CE07548 Brand: Elecfreaks

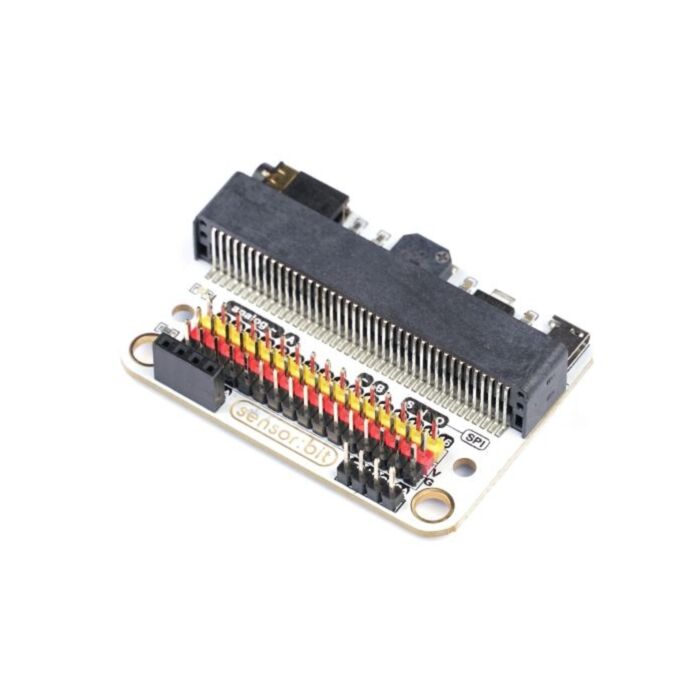

Sensor:bit is a breakout board based on micro:bit. It has extended all available IO ports on micro:bit, and lead out them in the form of GVS. With this board, we can extend various 3V electric brick modules like LED light, photocell, etc.. On the board, it has integrated a buzzer and an audio jack, which allows us to hear music from the buzzer or with our headphone.
$8.20 AUD, inc GST
$7.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 10-25 $7.23 (exc GST)
  • 25+ $7.08 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Sensor:bit is a breakout board based on micro:bit. It has extended all available IO ports on micro:bit, and lead out them in the form of GVS. With this board, we can extend various 3V electric brick modules like LED light, photocell, etc.. On the board, it has integrated a buzzer and an audio jack, which allows us to hear music from the buzzer or with our headphone.

Features

  • Extend most IO ports on micro:bit by GVS pins.
  • Independently lead out IIC interface. Enable to plug in IIC components like OLED, BME280, etc..
  • Integrated a buzzer and an audio jack.
  • Support Lego interface.
  • Mark out each IO port with silk printing.

Quick Start

Hardware Assembly

Plug in your micro:bit sensor:bit

microbit-sensor-bit-ce07548-desc-hardware

Programming

Navigate to the programming interface of Makecode online editor. Write your code to make the buzzer on sensor:bit play music.
You can see the whole program from the link

Or you can download it from the page here

Result

Press button A on micro:bit, the buzzer starts to play music. Plug in your headphone to sensor:bit, the buzzer stops playing music, and you can hear the music through your headphone.

Technical Specifications

  • Version No. V1.6
  • Working Voltage 2.7~3.3V
  • Buzzer Support
  • Lego Interface Support
  • Size 57mm x 42mm
  • Net weight 18g

Dimensions

Pinout
