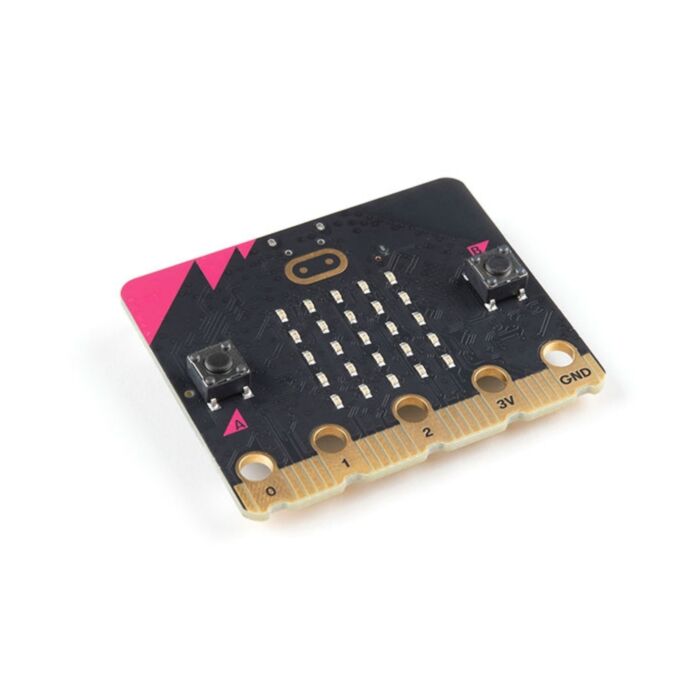

micro:bit V2.2 Board

Rating:
100% of 100
SKU: CE07353 Brand: micro:bit Guides (7)
The micro:bit V2 has been designed from the ground up with education in mind. There are many onboard sensors and actuators, enabling exciting educational experiences with coding and electronics.
$28.68 AUD, inc GST
$26.07 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 24th of Apr

Quantity Discounts:

  • 10-25 $25.29 (exc GST)
  • 25+ $24.77 (exc GST)
- +

151 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

micro:bit V2 is a programmable development board designed with education in mind. The latest V2 version has even more sensors and actuators, enabling expansive adventures into coding and electronics.

Some of the features include:

  • 5x5 Red LED Array
  • Two Programmable Buttons
  • Touch-sensitive logo (NEW)
  • MEMS microphone (NEW) and LED indicator
  • Onboard Light, Compass, Accelerometer, Temp Sensors and Speaker (NEW)

The creative freedom for electronics projects is basically endless. Micro:bit have prepared excellent learning resources such as:

A brief overview of the technical features:

  • 2.4 Ghz Micro:bit Radio/BLE 5.0 Smart Antenna
  • 25-pin Edge Connector
  • 19 dedicated GPIO pins including: PWM, i2c, SPI, and ext. power
  • Three Digital/Analog Input/Output Rings
  • Two Power Rings --- 3V and GND
  • Dedcated I2C bus for peripherals
  • MicroUSB Connector (5V)
  • JST-PH Battery Connector (Not JST-XH) (3V)
  • Power/reset Button with Status LED
  • 200 mA available for accessories
  • Program with C++, MakeCode, Python, Scratch

The micro:bit uses 3V digital logic, the full technical specifications are broken down here.

Core Electronics is Australia's approved micro:bit reseller, and as we are full-time makers ourselves, are here to help with your projects. The micro:bit V2 is backward compatible with the original version.

What's included:

  • 1x micro:bit v2
