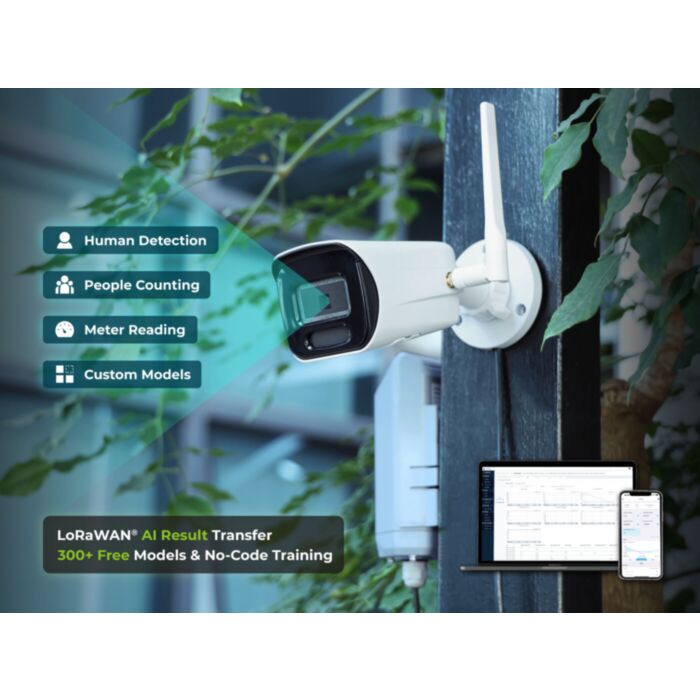

SenseCAP A1102 - LoRaWAN Vision AI Sensor

The SenseCAP A1102 LoRaWAN® Vision AI Sensor is a smart edge device that runs TinyML AI models locally, transmitting only inference results via LoRaWAN® (863-928MHz) for enhanced privacy and power efficiency. Operating at 480×480 resolution with 10 FPS, it comes with three pre-deployed models for human detection, people counting, and meter reading, while offering no-code access to 300+ pre-trained models or custom model training through the SenseCraft AI platform. It also supports model deployment from TensorFlow Lite and PyTorch frameworks. Users can configure the device and the frequency bands via the SenseCraft App, and deploy the IP66-rated sensor in harsh indoor or outdoor environments. With a built-in battery, making it ideal for various AI applications requiring long-range communication.

• Advanced Edge AI Camera: Equipped with a powerful MCU-based vision camera processor performing local inference at 480×480 resolution at 10 FPS. By transmitting only inference results, it ensures data privacy and minimizes network bandwidth usage.
• No-Code AI Model Deployment and Training: Pre-loaded with three on-device AI models (human detection, people counting, and meter reading) for out-of-box vision applications. Natively integrates with SenseCraft AI , a web-based platform offering 300+ pre-trained models for instant deployment and simple 3-step training workflow for classification and detection models. This enables rapid model training and deployment without coding expertise. Moreover, the devices also supports custom AI models converted from TensorFlow and PyTorch frameworks for edge deployment.
• LoRaWAN® Connectivity: Supports global frequency bands (863-928 MHz) with transmission range up to 10 km in optimal conditions, enabling reliable long-distance communication.
• 2 Power Options & Battery Life: Features a 19Ah SOCl2 D-size battery providing 279 days of operation at 5-minute intervals. Compatible with external DC power supply via optional junction box.
• IP66 Rating Environmental Durability: Features IP66-rated protection against dust ingress and strong water jets. Operates reliably in temperatures from 0°C to 70°C, suitable for diverse indoor and outdoor deployments.
• SenseCraft Cloud Integration: Includes SenseCraft Mate mobile app and web portal for easy device configuration, device management and quick data visualization. Features open API support and 3-month FREE trial access, it's compatible with third-party IoT platforms.


  Specification

  Product Model	SenseCAP A1102
  Microcontrollers	Vision AI: Himax-6538 LoRaWAN Network: Wio-E5 (STM32WLE5JC)
  Camera	Module: OV5647 Lens size: 1/4" Focal length: 3.4 mm (adjustable) Resolution: 2592 × 1944 pixels Pixel size: 1.4 µm × 1.4 µm Maximum frame rate: 1080p @ 30 fps, 720p @ 60 fps FOV: 62°
  Model Execution and Inference	480 * 480 >10 fps
  LoRaWAN® Transmission	Protocol: LoRaWAN v1.0.3 Class A
  	LoRaWAN® Frequency: IN865/EU868/US915/AU915/ AS923
  	Communication Distance: 2 to 10km (depending on the environment)
  	Max Transmitted Power: 19dBm
  Power Supply	Built-in Battery or DC 12V/1A (with external junction box wiring)
  Power Consumption	102mA
  Battery	Capacity: 19Ah (non-rechargeable)
  	Type: Standard D-size SOCl2 Battery
  Local Storage Memory	8GB MicroSD Card (Class 10) for storaging up to 20,000 images with timestamp and supports to export
  IP Rating	IP66
  Operating Temperature	0-70 °C
  Operating Humidity	0-100% RH (non-condensing)
  Cable Length	2 meters
  Device Weight	719g
  Device Dimensions	Camera:180mm*75mm*70mmDTU: 144.5mm*63mm*57mm

  Power Supply Options

  • Option 1: The SenseCAP A1102 operates in cyclic mode using a built-in 19Ah D-type Li-SOCl2 battery. The battery is commercially available for easy replacement and enables standalone outdoor deployment without requiring external power.
  • Option 2: The SenseCAP A1102 supports constant operation through a 12V DC power supply connection. An extra matching junction box is needed for straightforward installation and assembly.




  Hardware Overview

  • Onboard





  Application

  • Person Detection
  • People Counter
  • Face Detection
  • Specific Object Detection


  Documents

  Wiki


  ECCN/HTS



  HSCODE	9031809090
  USHSCODE	8517180050
  UPC
  EUHSCODE	9013101000
  COO	CHINA




  Part List

  SenseCAP A1102 - LoRaWAN Vision AI Sensor	x1
  2.4GHz Rod Antenna	x1
  Waterproof Aviation Plug	x1
  Phillips Screwdriver	x1
  Instruction Guide	x1
  Screws Package	x1
  Base Positioning Sticker	x1
