SenseCAP Solar Node P1 for Meshtastic

SKU: SS114993643 Brand: Seeed Studio

It is an economical solar-powered comms node or repeater based on Meshtastic. It meets basic comms needs in no - network zones. Unlike P1-Pro, P1 lacks a...

$154.95 AUD, inc GST

$140.86 AUD, exc GST

Out of Stock

For use in Australia

Operate only in bands and with settings that are permitted for your location and application. Check this product’s supported frequencies in the description/specs.
If you intend to operate outside shared/licence‑exempt conditions (e.g. in other bands, at higher power, with high‑gain antennas, or extended duty cycles), you must have the appropriate authorisation.

For use in other regions

Follow the spectrum rules for your country/region and select frequencies and settings accordingly.

A declaration of use will need to be submitted during checkout.

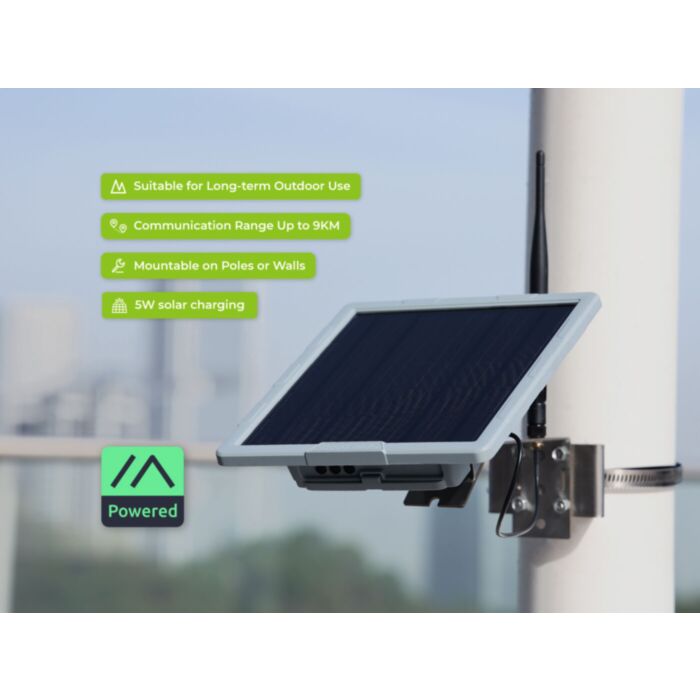

Build resilient, solar-powered Meshtastic nodes without paying for parts you may already own. SenseCAP Solar Node P1 is a cost-effective outdoor LoRa node that ships pre-installed with Meshtastic and a 5 W panel, ready for Grove sensors and your choice of power and GNSS add-ons.

Deploy it as a long-range repeater or edge sensor host: expect 8 to 9 km transmission in open areas, plug in Grove I2C sensors for environment data, and choose your own button-top 18650 cells and optional XIAO L76K GNSS. Prefer an all-in-one with positioning and batteries included? See the Seeed Studio SenseCAP Solar Node P1-Pro.

Technical Specifications

Main controller	Seeed Studio XIAO nRF52840 Plus (Nordic nRF52840, ARM Cortex-M4 32-bit with FPU, 64 MHz, 256 KB RAM, 1 MB Flash, 2 MB onboard Flash)
LoRa module	Wio-SX1262 (Semtech SX1262), TXOP 22 dBm @ 862-930 MHz
Pre-installed firmware	Meshtastic
Bluetooth	5.0
Solar panel	5 W
Antenna - LoRa	Rod antenna, 2 dBi, 868-915 MHz
GNSS module (optional)	XIAO L76K, supports GPS, GLONASS, Galileo
GNSS bands	GPS L1 C/A 1575.42 MHz, GLONASS L1 1602 MHz, BeiDou B1 1561.098 MHz
Interfaces	Grove x1 (I2C/GPIO), USB-C debugging
Buttons	Power on-off, Reset, User-defined
LED indicators	Charging x2, Solar panel status x1, Mesh heartbeat x1, User-defined x1
Power	5 V input, USB Type-C 5 V 1 A
Battery	User-supplied button-top 18650 cells. Note: this P1 model ships without the four 18650 batteries.
Range	8 to 9 km in open areas
Dimensions	191.2 x 201.2 x 42.1 mm
Outdoor readiness	Suitable for long-term outdoor use
RF cable	RP-SMA male to RF-SMA female, 300 mm
Mounting	Bracket set with universal joint and hoop; hoop diameter 70-100 mm

Compatibility

Meshtastic ecosystem	Pre-installed; joins and extends existing meshes	Core Electronics search for Meshtastic
Grove I2C temperature and humidity sensors	Plug-and-play via Grove port	Core Electronics search for Grove temperature and humidity sensors
Grove light sensors	Ambient light monitoring	Core Electronics search for Grove light sensors
Grove air quality sensors	Remote environmental monitoring	Core Electronics search for Grove air quality sensors
XIAO L76K GNSS module	Optional positioning add-on	Core Electronics search for XIAO L76K
Button-top 18650 batteries	User-supplied power source	Core Electronics search for button-top 18650 batteries
860-930 MHz 3 dBi fiberglass antenna kit	Higher gain external antenna option	Core Electronics search for LoRa fiberglass antenna

Additional Resources

Seeed Studio wiki: Get started with Meshtastic Solar Node including supported Grove sensors.
Seeed Studio consumption test and battery life calculation spreadsheet.
Seeed Studio CE certificate (PDF), FCC certificate (PDF), RoHS certificate (PDF).
Seeed Studio SenseCAP Solar Node P1-Pro for integrated GPS and batteries.

What’s Included

SenseCAP Solar Node P1 (without GPS and battery) x1
Mounting brackets x1 set
- Universal joint
- Connector
- Hoop bracket
- Hoop ring
2 dBi 868-915 MHz rubber rod antenna x1
RF cable, RP-SMA male to RF-SMA female, 300 mm x1
Black Type-C cable x1
User manual
