Saleae Logic (8 Channel Logic Analyser)

SKU: 022-LOGIC

$159.99 AUD, inc GST
$145.45 AUD, exc GST

More Views

Saleae Logic (8 Channel Logic Analyser)

SKU: 022-LOGIC

$159.99 AUD, inc GST
$145.45 AUD, exc GST
3 reviews 0 5 5

Retired Product

Replaced by: Logic8
This product has been replaced by: Logic8

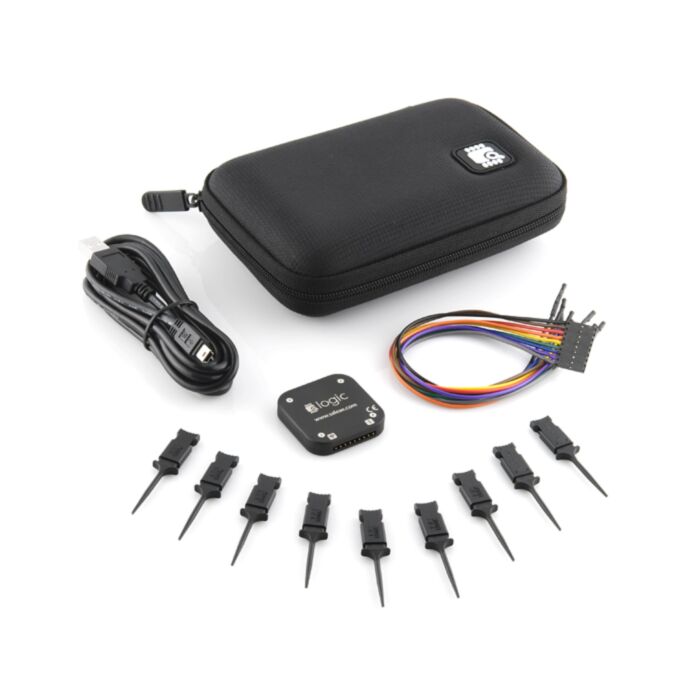

Saleae are renowned for their sleek, light-weight software and high quality Logic Analyser products. The "Logic" model provides debugging of 8 digital waveforms such as I2C, SPI or general digital IO lines. It's also great for those reverse engineering projects. Supports signals 5V and lower.

Includes everything you need in a compact carrying case. Test leads can be disconnected from the Logic unit. This makes it easy to remove the expensive portion of Logic from a board when you've got lots of hooks in place.

Software is available for Mac, Windows, and Linux.

Features:

  • USB 2.0 Cable (5')
  • Sampling rates up to 24MHz @8 bits
  • 9 ultra-flexible test lead set
  • 9 E-Z Hook XKM Micro-Hook
  • -0.5V to 5.25V operating voltage
  • Input low voltage: -0.5 to 0.8V
  • Input high voltage: 2 to 5.25V
  • 24MHz maximum sample rate
  • 200M samples

Dimensions:

  • 4 x 4 x 1 cm
  • 16g
