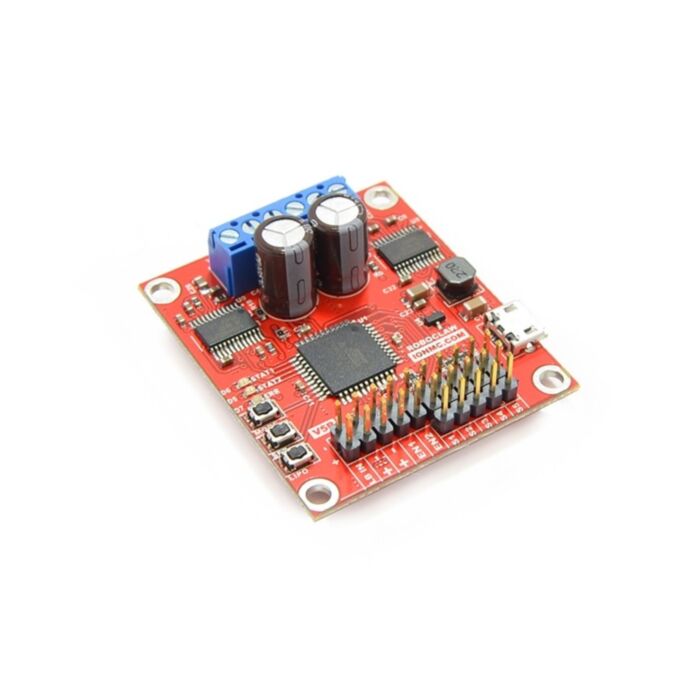

RoboClaw 2x7A Motor Controller

SKU: GB-IMC404 Brand: goBilda

The RoboClaw 2x7A is an intelligent motor controller designed to control two brushed DC motors at 7.5 Amps continuous with up to 15 Amps.....

$158.56 AUD, inc GST

$144.15 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

5+ $141.98 (exc GST)

The RoboClaw 2x7A is an intelligent motor controller designed to control two brushed DC motors at 7.5 Amps continuous with up to 15 Amps peak per channel. It can be controlled from USB, RC radio, PWM, TTL serial, analog and microcontrollers such as an Arduino or Raspberry Pi.

RoboClaw automatically supports 3.3V or 5V logic levels, travel limit switches, home switches, emergency stop switches, power supplies, braking systems and contactors. Power supplies can be used by enabling the built in voltage clamping control feature. A built-in switching mode BEC supplies 5VDC at up to 1.2 Amps for powering user devices.

Brushed DC motors can be controlled in open or closed loop using position or velocity control modes. RoboClaw features several built-in commands for controlling acceleration, deceleration, distance, speed, current sense, voltage limits and more. RC and analog control modes also include several user defined settings such as acceleration and decelerate speeds.

Dual quadrature encoders with up to 19.6 million pulses per second are supported and can be auto tuned using Ion Studio which is a free downloadable application. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. RoboClaw's closed loop functionality creates absolute control over speed, velocity and direction regardless of load changes.

RoboClaw incorporates several protection features including temperature, current, over voltage and under voltage limits. The protection features are self monitoring and protect RoboClaw from damage in any operating condition. Several user definable settings such as maximum current limit, maximum and minimum battery voltages are provided for more refined control.

RoboClaw's regenerative capabilities will charge a supply battery during slow down or breaking. It's advanced circuitry can change direction during full throttle without damage! RoboClaw also incorporates a LiPo cutoff mode to prevent battery damage.

Features:

Bridge Channels	Yes
3.3V Safe Outputs	Yes
5V Tolerant Inputs	Yes
Encoder Auto Tune	Yes
Thermal Protection	Yes
Current Sense	Yes
User Selectable Peak Current	Yes
Battery Protection	Yes
Regenerative Braking	Yes
Over Voltage Protection	Yes
Under Voltage Protection	Yes
Self Diagnostics	Yes
Position Control Mode	Yes
Velocity Control Mode	Yes
Control Methods	USB, Analog, RS232, or RC Style PWM Signal

Tech Tips:

Motion Studio Settings:

Arduino:

Raspberry Pi:

Downloads

Specs

Weight	32g
Motor Channels	2
Max Continuous Current per Channel	7.5A
Max Peak Current per Channel	15A
Bridged Channels Peak Current	30A
Bridged Channels Continuous Current	15A
Max Voltage	34VDC
BEC	5 VDC @ 1200mA
Motor Compatibility	Brushed DC
Encoder Compatibility	Relative and Absolute
Motor Direction	Bidirectional
