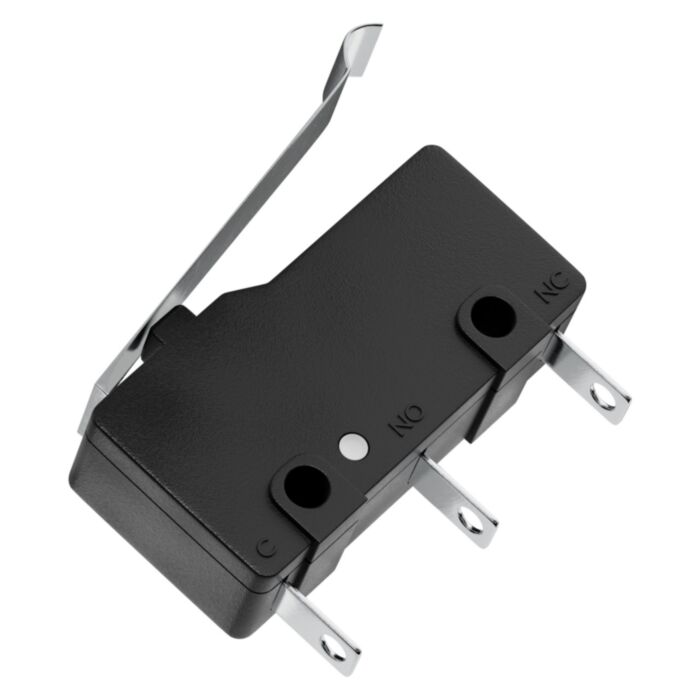

Micro Limit Switch (Bump Lever) - 2 Pack

Rating:

100% of 100

SKU: GB-3103-0001-0002 Brand: goBilda

This switch has a bump, sometimes referred to as an imitation roller, on the end of the lever. The bump creates a consistent point of.....

$4.20 AUD, inc GST

$3.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $3.63 (exc GST)
25+ $3.44 (exc GST)

This switch has a bump, sometimes referred to as an imitation roller, on the end of the lever. The bump creates a consistent point of contact for accurate switch actuation.

Downloads

STEP File

Specs

Weight	2.0g Each
Switch Style	SPDT Momentary Limit Switch
Max Current	6A
Max Voltage	250VAC
Connector Style	3.2mm Width Spade Terminals
Continuous Current	2A
Switching Life	200,000 Cycles
Environmental Temperature	-25-85?
Contact Resistance	=0.02?
Insulation Resistance	=100M?

This product is listed in:

goBILDA>ELECTRONICS>Switches>Limit Switches
