PD Power Extension Board for Raspberry Pi 5
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov
Quantity Discounts:
- 6-12 $47.05 (exc GST)
- 12+ $46.07 (exc GST)

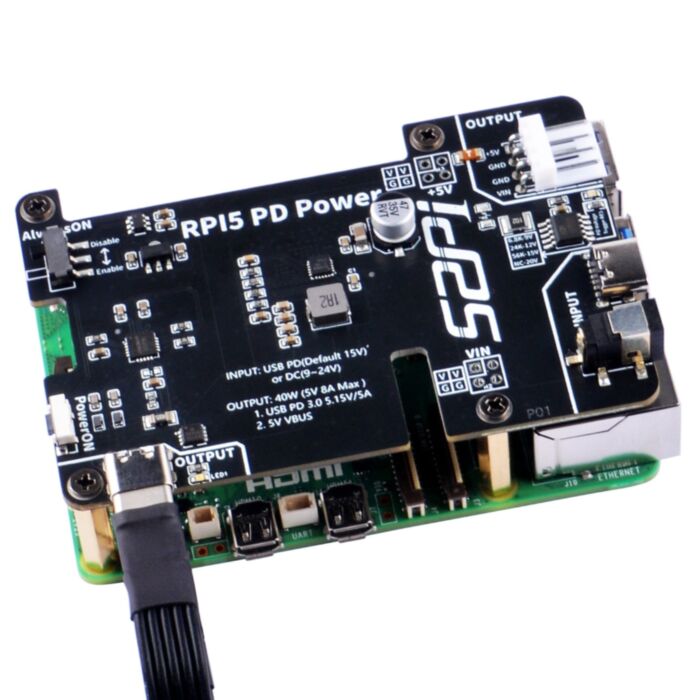

The PD Power Expansion board from 52Pi is a multi-feature power management solution for Raspberry Pi 5.
The board offers a range of power input options, such as USB-C PD, DC** 9-12V and even a set of VIN pads. Output power enjoys similar flexibility, including USB-C out (5V 5A), ATX 4-pin, and 5V output pads.
There's also an always-ON switch which allows you to select to start the device automatically when power is connected, without the need to press the power button.
Finally, the onboard power button can be used for manual power control. A short-press turns power on, a long-press cuts it off.
We recommend using the Raspberry Pi 27W USB-C power supply when powering via USB-C.
Warning: Do not connect multiple input power options at the same time.
Raspberry Pi 5 not included.
Features
- Power Input Options:
- USB PD: Default 15V input for Power Delivery
- DC** Interface: 9-12V input through a dedicated DC interface
- Power Output Options:
- USB-C Output: Delivers 5V/5A MAX via a USB-C port
- USB PD 3.0 Interface: Provides 5.15V@5A output through Power Delivery 3.0
- 5V VBUS Output: Alternate output option for 5V power supply
- Always-ON Switch:
- Default State: Disabled.
- Functionality: Requires manual activation by pressing the Power ON button during each startup
- Automatic Startup: Supports automatic startup of the Raspberry Pi upon power restoration
- Manual Power Control: Long-press the Power ON switch for shutdown
- Versatile Power Management: Flexibility power input sources and output options
- Compact and Compatible: Designed for Raspberry Pi 5
- User-Friendly Operation: Intuitive push-button controls for both manual and automatic power management
** Specification/size of the DC connector TBC shortly. DC connector not included.
Resources
- Product Wiki
- Product number: 52Pi EP-0225
Package Contents
- 1 x PD Power Board for Raspberry Pi 5
- 8 x M2.5x4mm Black flat head screws
- 4 x M2.5x18mm Copper pillars
- 1 x USB-C to USB-C Power cable
Raspberry Pi 5 not included.
