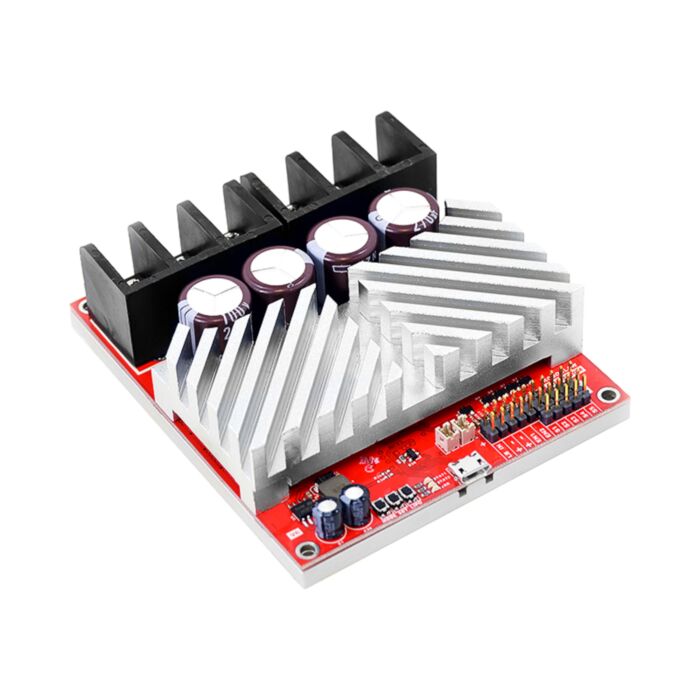

RoboClaw 2x60A Motor Controller

SKU: GB-IMC414 Brand: goBilda
The Roboclaw 2x60A motor controller by Ion Motion Control can supply two brushed DC motors with 60 Amps continuous and up to 120 Amps.....
Special Price $462.90 AUD, inc GST
Regular Price $469.95 AUD, inc GST
$427.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Roboclaw 2x60A motor controller by Ion Motion Control can supply two brushed DC motors with 60 Amps continuous and up to 120 Amps peak. With its multi mode interface it can be controlled from USB, RC radio, serial devices, analog and or microcontrollers such as an Arduino or Raspberry Pi. Dual quadrature encoders with up to 19.6 million pulses per second are supported. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. Roboclaw's close loop functionality creates absolute control over speed, velocity and direction regardless of loading changes. At the heart of Roboclaw is a high performance motion control intelligence which achieves a higher precision of control while providing better motor performance in open or closed loop modes. With Roboclaw's synchronous regenerative capabilities it will charge a supply battery during slow down or breaking action. With it's advanced circuitry it can also change direction during full throttle without damage! Roboclaw also incorporates a lithium cutoff mode protecting batteries from damage.

Features:

Bridge ChannelsYes
3.3V Safe OutputsYes
5V Tolerant InputsYes
Encoder Auto TuneYes
Thermal ProtectionYes
Current SenseYes
User Selectable Peak CurrentYes
Battery ProtectionYes
Regenerative BrakingYes
Over Voltage ProtectionYes
Under Voltage ProtectionYes
Self DiagnosticsYes
Position Control ModeYes
Velocity Control ModeYes
Control MethodsUSB, Analog, RS232, or RC Style PWM Signal

Tech Tips:

Downloads

Specs

Weight 292g
Motor Channels 2
Max Continuous Current per Channel 60A
Max Peak Current per Channel 120A
Bridged Channels Peak Current 240A
Bridged Channels Continuous Current 120A
Max Voltage 34VDC
BEC 5VDC @ 3Amps
Motor Compatibility Brushed DC
Encoder Compatibility Relative and Absolute
Motor Direction Bidirectional
