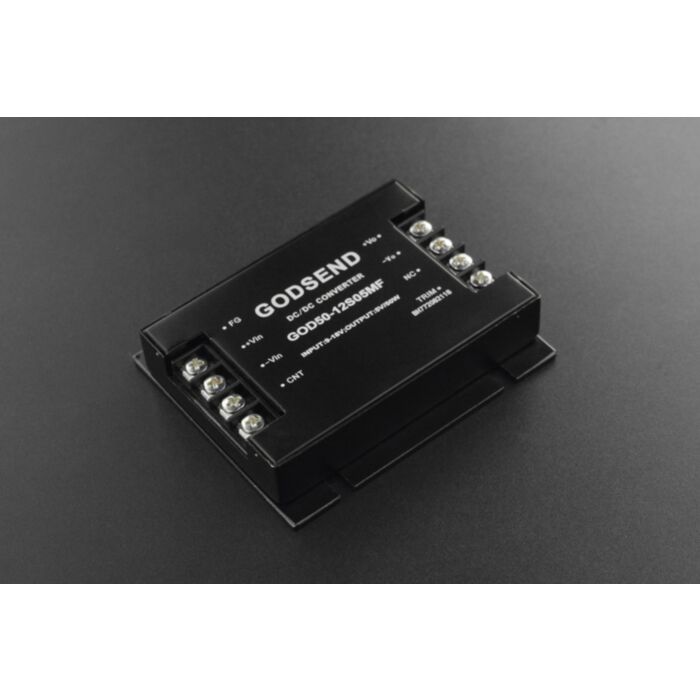

Industrial Isolated DC-DC Buck Converter (9~18V to 5V 10A)

SKU: DFR0929 Brand: DFRobot
This industrial-grade 50W high-power step-down module offers a voltage input range of 9-18V and a maximum output of 5V/10A...
$74.95 AUD, inc GST
$68.14 AUD, exc GST

Available with a lead time
Expect dispatch between May 16 and May 22

Quantity Discounts:

  • 6-12 $66.09 (exc GST)
  • 12+ $64.73 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This industrial-grade 50W high-power step-down module offers a voltage input range of 9-18V and a maximum output of 5V/10A. It has the characteristics of high isolation withstand voltage of 1500V DC or 800V AC, low radiation interference, ripple noise, etc.

With short-circuit protection and input under-voltage protection mechanisms, the converter can be widely used in portable power supply systems on the chassis, railway locomotives, new energy, communications, electric power, industrial control, occasions where input and output are isolated and other industries.

Pin12345678
NameFG+Vin-VinCNTTRIMNC-Vo+Vo
DefinitionShellInput positiveInput negativeControl footOutput regulationfloatingOutput negativeOutput positive

CNT (control pin): Module on: CNT is floating or connected to TTL high level (3.5~12Vdc); Module off: CNT is connected to GND or low level (0~1.5Vdc)


Precautions:

  • The power module will generate heat after being energized for a period of time. Please do not touch it with your hands or body, otherwise, it may cause burns.
  • Please check whether the wiring is correct before turning on the power, otherwise, it will cause damage to the power supply.
  • When testing the insulation withstand voltage between the input and output, please short-circuit all the pins of the input and output terminals respectively and test.
  • When the product shell temperature exceeds the specified value, heat dissipation needs to be considered.
  • Features
  • Output power up to 50W
  • High isolation withstand voltage 1500V DC or 800V AC
  • Low radiation interference, low ripple noise
  • Environmental-friendly design, RoHS compliant
  • Working Temperature: -40°C~+85°C
  • Applications
  • Portable power supply systems
  • Specification
  • Input Voltage: 9-18V
  • Output Voltage: 5V
  • Output Current: 0-10A
  • Output Power: 50W (max)
  • Conversion Efficiency: 83%
  • Insulation Voltage: 1500V (input-output, test time 1 minute, leakage current less than 1mA)
  • Input-Shell (FG) 1000V
  • Output-Shell (FG) 500V
  • Working Temperature: -40~+85°C
  • Storage Temperature: -55~+125°C
  • Storage Humidity: 5~95%RH
  • Protection Mechanism: short-circuit protection, input under-voltage protection
  • Parts List
  • Industrial Isolated DC-DC Buck Converter (9~18V to 5V 10A) x1
