Incremental Photoelectric Rotary Encoder - 400P/R

SKU: SEN0230

$40.10 AUD, inc GST
$36.45 AUD, exc GST

More Views

Incremental Photoelectric Rotary Encoder - 400P/R
40.1 AUD

SKU: SEN0230

$40.10 AUD, inc GST
$36.45 AUD, exc GST

INTRODUCTION

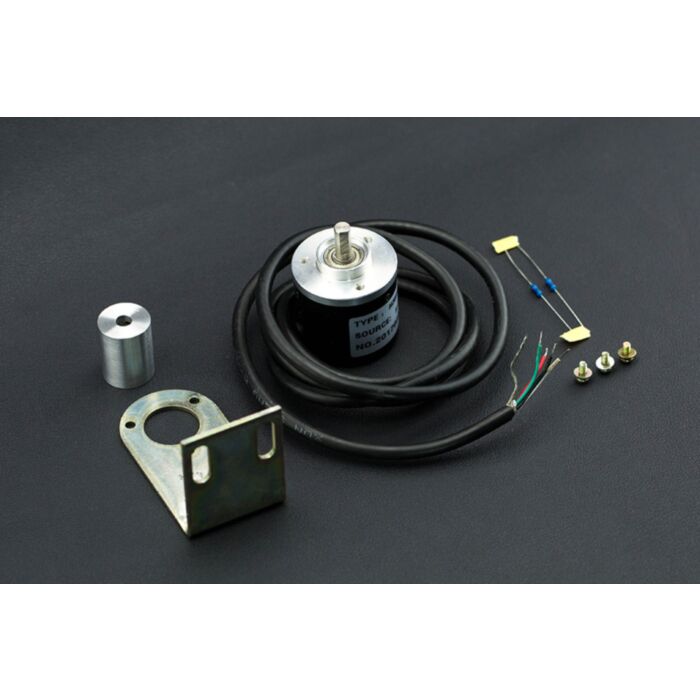

This is a high-quality, optical, rotary encoder with standard quadrature configuration. Each channel is 400 pulse/rev giving a combined maximum of 1600 edge/rev in dual-phase (4x) output. Use it for speed (angular velocity) or relative position measurement.

Outputs are open-collector (NPN), so you can connect them directly with a microcontroller (Arduino, STM32, PLC) with internal pull-up resistors enabled.


Note: If you want to visualise the output on an oscilloscope, you'll need pull-up resistors on the outputs.

SPECIFICATION

  • Supply Voltage: 4.8V ~ 24v
  • Encoder Body Size: Φ39× 36.5mm
  • Output Shaft Diameter: Φ6 × 13mm
  • Outside Shaft Platform: Φ20 × 4.85 mm
  • Fixing Holes Screws: M3
  • Weight: 234 g
  • Max speed: 5000 rpm

DOCUMENTS

SHIPPING LIST

  • Encoder x1
  • Encoder mounting bracket x1
  • 6mm coupling x1
  • Screw accessories x1
  • 10K resistors x2
