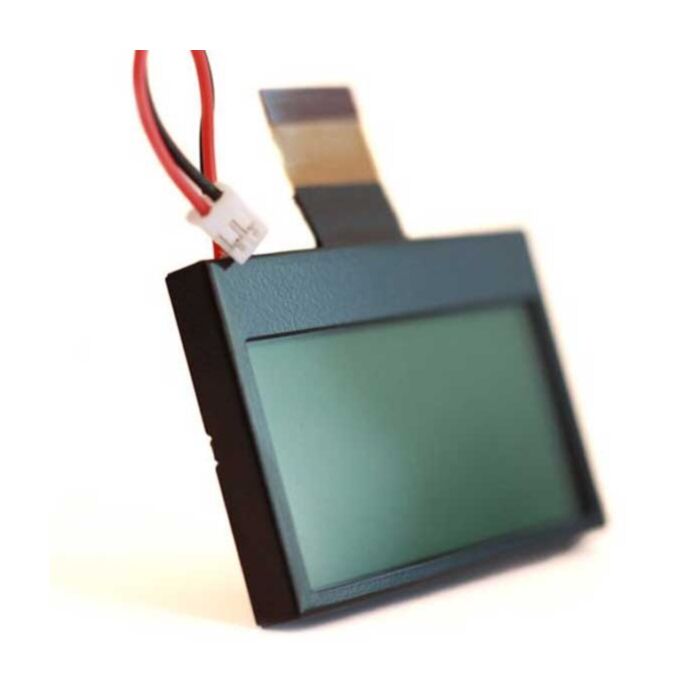

RF Explorer LCD screen

SKU: SS308010000 Brand: Seeed Studio

Replacement LCD for RF Explorer devices Custom model designed specifically for RF Explorer Included sticker foam for PCB assembly

$49.15 AUD, inc GST

$44.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

10-25 $42.89 (exc GST)
25+ $41.55 (exc GST)

This LCD is a screen replacement for RF Explorer, the same custom designed COG LCD model included in all RF Explorer handheld devices, guarantees same great visibility experience both indoors and outdoors.

You can use this replacement in case your LCD got any damage. The package includes sticker foam to properly fit the LCD into RF Explorer PCB.

Please make sure to use anti-static ESD measures when manipulating RF Explorer PCB and this LCD module.

Feature

Replacement LCD for RF Explorer devices
Custom model designed specifically for RF Explorer
Included sticker foam for PCB assembly

Specification

128x64 FSTN COG LCD – positive transflective
Dot pitch: 0.35x0.36mm
Viewing area: 51x26mm
External dimensions: 57x56x7mm
Supply voltage DC 3V
Backlight: LED white
Connector: FPC 0.5mm 30pin
Driver: ST7565P
Storage Temperature: -10 to 60°C
Operating Temperature: 0 to 50°C
Max humidity: 90%RH

Part List

RF Explorer LCD X 1

Technical details

Dimensions 80mm x100mm x9mm
Weight G.W 25g
Battery Exclude
