reTerminal DM - (CM4 10.11")

SKU: SS114070201 Brand: Seeed Studio

Seeed's reTerminal DM is a Raspberry Pi-powered HMI/PLC/Panel PC/Gateway all-in-one device, equipped with CM4 core and integrated with Node-RED. Order now!...

$824.95 AUD, inc GST

$749.95 AUD, exc GST

Available with a lead time
Expect dispatch between May 20 and May 22

Quantity Discounts:

3-6 $719.95 (exc GST)
6+ $697.45 (exc GST)

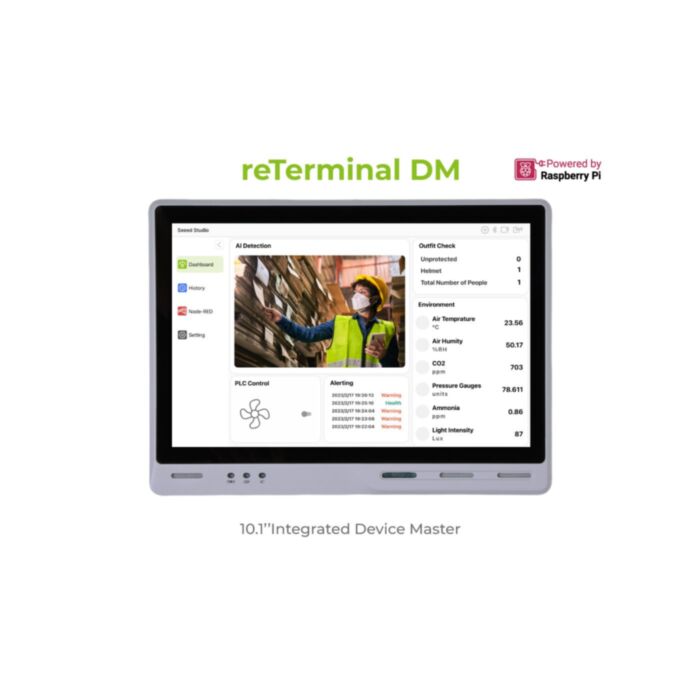

10.1" open-source industrial HMI - an Integrated Device Master to unify data flow and manage the onsite device.

Based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen.

It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, WiFi, and BLE.

It’s also equipped with a larger screen, stricter industrial protection levels, and richer industrial interfaces, designed as the advanced version of reTerminal.

Features

Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
Open-source design in software and hardware: Powered by Raspberry Pi CM4, easy for customization or derivatives with the PCIe extensions design (flexible for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations)
Cost-effective Device Master: HMI, PLC, Panel PC and gateway all-in-one. Perfect for the distributed hub devices
Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
Hybrid connectivity: Support 4G LTE, LoRaWAN®, WiFi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
Product Warranty: Two-year warranty

Applications

reTerminal DM is an integrated device master that can function as an HMI/PLC/Gateway/Panel PC all-in-one device, working in the edge layer of the IOT architecture, unifying data flow, and managing onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios. It can downlink to the edge devices

edge controllers, coordinating legacy machines by talking unlimited protocols and flexible software.
gateways and environmental sensors, connecting to the IT infrastructure to provide a new frontier of data to adapt to changes.
AI boxes, offer better insights and are able to handle multi streams with easy setups. By combining them with AI and automation, many more operations will be industrialized.

And uplink to the cloud and application end with its hybrid connectivity capabilities.

Specifications

Basic
CPU	CM4 Quad-core Cortex-A72@ 1.5GHz
Memory	8GB
Storage	32GB eMMC M.2 NVMe SSD Slot 2280-M Key (optional) *This optional feature requires the additional purchase of an SSD (SKU 112990247) and a Dual LAN & SSD PCIe Extension Board (SKU 114993112)
OS Support	Raspbian SenseCraft Edge OS
Display
Size	10.1''
Max. Resolution	1280 x 800
Max. Colors	16.7M (8-bit)
Luminance (nit)	400
Viewing Angle (H/V°)	170/170
Backlight Life (hrs)	30000
Touch Type	10-point Capacitive
Pencil Hardness	7H
Video&Audio
Video	HDMI2.0
Audio	Microphone x 2 Buzzer 3.5mm Audio Jack
Camera	CSI (optional) *This optional feature requires the purchase of a reTerminal DM device with Camera & PoE version (SKU 114070221)
Interfaces
Ethernet	1 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps (optional) *This optional feature requires the additional purchase of a Dual LAN & SSD PCIe Extension Board (SKU 114993112)
USB	2 x USB-A 2.0 Host 2 x USB 3.0 (optional) *This optional feature requires the additional purchase of a Dual USB3 PCIe Extension Board (SKU 114993113)
RS485	1 x RS-485 > Terminal Block 1 xRS-485 > DB9 (optional) *This optional feature requires the additional purchase of a Dual DB9 PCIe Extension Board (SKU 114993111)
RS232	1 x RS-232 > Terminal Block 1 xRS-232 > DB9 (optional) *This optional feature requires the additional purchase of a Dual DB9 PCIe Extension Board (SKU 114993111)
CAN	1 x CAN-BUS > Terminal Block
DI	4x DI > Terminal Block
DO	4x DO > Terminal Block
40pin GPIO	Inside
Wireless Communication
Wifi	On-chip WiFi *This optional feature requires the additional purchase of a Raspberry Pi CM4 Antenna Kit (SKU 114992364)
BLE	On-chip BLE
LoRa	Mini-PCIe for LoRaWAN (optional) *This optional feature requires the additional purchase of a LoRa Antenna Kit (SKU 110061501) and a region-optional LoRaWAN Gateway Module (SPI) (SKU 114992967, 114992549)
Cellular	Mini-PCIe for 4G (optional) *This optional feature requires the additional purchase of a 4G Antenna Kit (SKU 110061502) and a region optional LTE Cat 4 Module (SKU 113991134, 113991135)
Power
Input	2-pin Terminal Block
PoE	12.95W PoE (optional) *This optional feature requires the additional purchase of a PoE Module Kit (SKU 110991925)
Power Range	12~24V DC *There is no adapter in the standard product. Please purchase the correct Power Adapter (SKU 110061505, 110061506) version separately if required.
Power Consumption	6W Typ. 9W Max.
Power Switch	NO
Reboot Switch	YES
Environment
Ingress Protection	IP65 Front Panel
Operating Temperature	-10~50 °C
Storage Temperature	-20~70 °C
Humidity (Operating)	10~95% RH
Mechanical
Dimension (W x H x D)	259.4 x 191 x 42.2 mm
Enclosure	Die-cast Aluminum Alloy
Mounting	Panel, VESA, Din-Rail *There is no mounting accessories in the standard product. If Panel mount Kit (SKU 110061503) or Din-Rail mount Kit (SKU 114070181) accessories are required, please purchase them separately.
Weight (Net)	1.8Kg
Vibration Resistance	5 Grms random vibration (5 ~ 500Hz) during operation, IEC60068-2-64
Shock Resistance	Operating 50 G peak( 11ms duration), IEC 60068-2-27
Certification
CE, FCC, UCKA, RoHS, Telec, REACH
EMC
ESD		EN61000-4-2, Level 3
EFT		EN61000-4-4, Level 2
Surge		EN61000-4-5, Level 2
Others
RTC		High Accuracy RTC
Hardware WatchDog		1~255s
Security		ATECC608A
Warranty		2 Years
Heat dissipation		Fanless

Documentations
